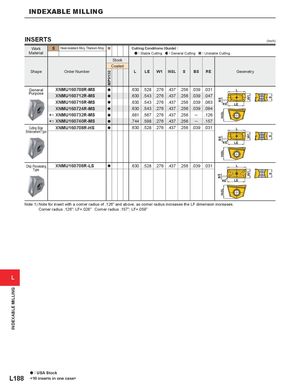

| Work Material | S Heat-resistant Alloy, Titanium Alloy | Cuttin :S | g Cond table C | itions( utting | Guide) : :Gen | eral Cutt | ing | :Unstab | le Cutting | (inch) | |
| Stock Coated | |||||||||||
| Shape | Order Number | MP9130 | L | LE | W1 | INSL | S | BS | RE | Geometr | y |
| General | XNMU160708R-MS | a | .630 | .528 | .276 | .437 | .256 | .039 | .031 | L | |
| Purpose | XNMU160712R-MS | a | .630 | .543 | .276 | .437 | .256 | .039 | .047 | W1 S | S |
| XNMU160716R-MS | a | .630 | .543 | .276 | .437 | .256 | .039 | .063 | LE B RE | ||
| XNMU160724R-MS | a | .630 | .543 | .276 | .437 | .256 | .039 | .094 | |||
| XNMU160732R-MS 1 | a | .681 | .567 | .276 | .437 | .256 | ─ | .126 | INSL | ||
| XNMU160740R-MS 1 | a | .744 | .598 | .276 | .437 | .256 | ─ | .157 | |||
| Cutting Edge | XNMU160708R-HS | a | .630 | .528 | .276 | .437 | .256 | .039 | .031 | L | |
| Enhancement Type | LE W1 BS RE INSL | S | |||||||||
| Chip Processing | XNMU160708R-LS | a | .630 | .528 | .276 | .437 | .256 | .039 | .031 | L | |
| Type | LE W1 BS RE INSL | S |
Note 1) Note for insert with a corner radius of .126" and above, as corner radius increases the LF dimension increases. Corner radius .126": LF+.028" Corner radius .157": LF+.059"
