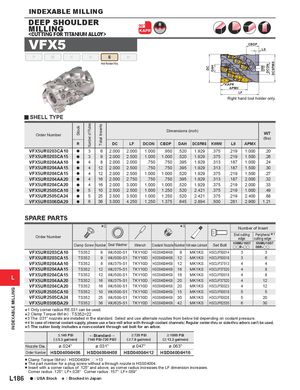

Общий каталог Mitsubishi 2020 - 2021 - страница 1361
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
<CUTTING FOR TITANIUM ALLOY>
VFX5
P M K N S H
Heat Resistant Alloy
KAPR
CBDP L8
KAPR APMX LF Right hand tool holder only.
y SHELL TYPE
| Order Number | Stock | ber of Flutes | al Inserts | Dime | nsions ( | inch) | WT (lbs) | ||||||
| R | Num | Tot | DC | LF | DCON | CBDP | DAH | DCSFMS | KWW | L8 | APMX | ||
| VFX5UR0203CA10 | a | 3 | 6 | 2.000 | 2.000 | 1.000 | .950 | .520 | 1.929 | .375 | .219 | 1.000 | .20 |
| VFX5UR0203CA15 | a | 3 | 9 | 2.000 | 2.500 | 1.000 | 1.000 | .520 | 1.929 | .375 | .219 | 1.500 | .26 |
| VFX5UR0204AA10 | a | 4 | 8 | 2.000 | 2.000 | .750 | .750 | .395 | 1.929 | .313 | .187 | 1.000 | .24 |
| VFX5UR0204AA15 | a | 4 | 12 | 2.000 | 2.500 | .750 | .750 | .395 | 1.929 | .313 | .187 | 1.500 | .30 |
| VFX5UR0204CA15 | a | 4 | 12 | 2.000 | 2.500 | 1.000 | 1.000 | .520 | 1.929 | .375 | .219 | 1.500 | .27 |
| VFX5UR0204AA20 | a | 4 | 16 | 2.000 | 2.750 | .750 | .750 | .395 | 1.929 | .313 | .187 | 2.000 | .32 |
| VFX5UR0204CA20 | a | 4 | 16 | 2.000 | 3.000 | 1.000 | 1.000 | .520 | 1.929 | .375 | .219 | 2.000 | .33 |
| VFX5UR2505CA10 | a | 5 | 10 | 2.500 | 2.500 | 1.000 | 1.250 | .520 | 2.421 | .375 | .219 | 1.000 | .49 |
| VFX5UR2505CA24 | a | 5 | 25 | 2.500 | 3.500 | 1.000 | 1.250 | .520 | 2.421 | .375 | .219 | 2.400 | .68 |
| VFX5UR0306DA29 | a | 6 | 36 | 3.000 | 4.250 | 1.250 | 1.375 | .645 | 2.894 | .500 | .281 | 2.900 | 1.21 |
SPARE PARTS
| Order Number | 2 | 3 | Number End cutting edge | 1 of Insert Peripheral cuttingedge | ||||||
| Clamp Screw | Number | Seal Washer | Wrench | Coolant Nozzle | Number | Anti-seize Lubricant | Set Bolt | XNMU1607 ooR-oo | XNMU1607 08R-oo | |
| VFX5UR0203CA10 | TS352 | 6 | WU500-S1 | TKY10D | HSD04004H08 | 9 | MK1KS | HSCUF50014 | 3 | 3 |
| VFX5UR0203CA15 | TS352 | 9 | WU500-S1 | TKY10D | HSD04004H08 | 12 | MK1KS | HSCUF50018 | 3 | 6 |
| VFX5UR0204AA10 | TS352 | 8 | WU375-S1 | TKY10D | HSD04004H08 | 12 | MK1KS | HSCUF37513 | 4 | 4 |
| VFX5UR0204AA15 | TS352 | 12 | WU375-S1 | TKY10D | HSD04004H08 | 16 | MK1KS | HSCUF37520 | 4 | 8 |
| VFX5UR0204CA15 | TS352 | 12 | WU500-S1 | TKY10D | HSD04004H08 | 16 | MK1KS | HSCUF50018 | 4 | 8 |
| VFX5UR0204AA20 | TS352 | 16 | WU375-S1 | TKY10D | HSD04004H08 | 20 | MK1KS | HSCUF37520 | 4 | 12 |
| VFX5UR0204CA20 | TS352 | 16 | WU500-S1 | TKY10D | HSD04004H08 | 20 | MK1KS | HSCUF50023 | 4 | 12 |
| VFX5UR2505CA10 | TS352 | 10 | WU500-S1 | TKY10D | HSD04004H08 | 15 | MK1KS | HSCUF50018 | 5 | 5 |
| VFX5UR2505CA24 | TS352 | 25 | WU500-S1 | TKY10D | HSD04004H08 | 30 | MK1KS | HSCUF50028 | 5 | 20 |
| VFX5UR0306DA29 | TS352 | 36 | WU625-S1 | TKY10D | HSD04004H08 | 42 | MK1KS | HSCUF62535 | 6 | 30 |
*1 Only corner radius RE.031 can be used.
**2 Clamp Torque (lbf-in) : TS352=22
*3 The .031" nozzels are installed in the standard. Select and use alternate nozzles from below list depending on coolant pressure. *4 In case of internal coolant supply, please use a face mill arbor with through coolant channels; Regular center-thru or side-thru arbors can't be used. 5 The cutter body includes a non-coolant through set bolt for an arbor.
| ←Standard→ | >720 PSI | >1000 PSI | ||
| ( | (140 PSI-720 PSI) | (>7.9 gal/min) | (>13.2 gal/min) | |
| Nozzle Dia. | ø.024" | ø.031" | ø.047" | ø.063" |
| Order Number | HSD04004H06 | HSD04004H08 | HSD04004H12 | HSD04004H16 |
- Clamp Torque (lbf-in) : HSD0400Hpp=13 Insert with a corner radius of .125" and above, as corner radius increases the LF dimension increases. Corner radius .125": LF+.028" Corner radius .157": LF+.059"
