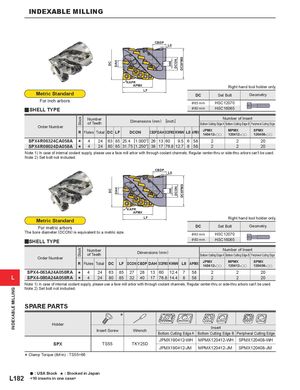

INDEXABLE MILLING CBDP L8 DCSFMS DCON DAH DC KWW KAPR APMX Right hand tool holder only. LF Metric Standard DC Set Bolt Geometry For inch arbors & 63 mm HSC12070 y SHELL TYPE & 80 mm HSC16065 Number Number of Insert Stock Dimensions (mm) [inch] of Teeth Bottom Cutting Edge A Bottom Cutting Edge B Peripheral Cutting Edge Order Number JPMX MPMX SPMX R Flutes Total DC LF DCON CBDP DAH DCSFMS KWW L8 APMX 140412- 120412- oo 120408- oo oo SPX4R06324CA058A s 4 24 63 85 25.4 [1.000″] 26 13 60 9.5 6 58 2 2 20 SPX4R08024DA058A s 4 24 80 85 31.75 [1.250″] 38 17 76.8 12.7 8 58 2 2 20 Note 1) In case of internal coolant supply, please use a face mill arbor with through coolant channels; Regular center-thru or side-thru arbors can't be used. Note 2) Set bolt not included. CBDP L8 DCSFMS DCON DAH DC KWW KAPR APMX LF Right hand tool holder only. Metric Standard For metric arbors DC Set Bolt Geometry The bore diameter (DCON) is equivalent to a metric size. & 63 mm HSC12070 & 80 mm HSC16065 ySHELL TYPE Number Number of Insert Stock Dimensions (mm) of Teeth Bottom Cutting Edge A Bottom Cutting Edge B Peripheral Cutting Edge Order Number JPMX MPMX SPMX R Flutes Total DC LF DCON CBDP DAH DCSFMS KWW L8 APMX 140412- oo 120412- oo 120408- oo SPX4-063A24A058RA s 4 24 63 85 27 28 13 60 12.4 7 58 2 2 20 L SPX4-080A24A058RA s 4 24 80 85 32 40 17 76.8 14.4 8 58 2 2 20 Note 1) In case of internal coolant supply, please use a face mill arbor with through coolant channels; Regular center-thru or side-thru arbors can't be used. Note 2) Set bolt not included. INDEXABLE MILLING SPARE PARTS * Holder Insert Insert Screw Wrench Bottom Cutting Edge A Bottom Cutting Edge B Peripheral Cutting Edge JPMX190412-WH MPMX120412-WH SPMX120408-WH SPX TS55 TKY25D JPMX190412-JM MPMX120412-JM SPMX120408-JM * Clamp Torque (lbf-in) : TS55=66 a : USA Stock s : Stocked in Japan L182 <10 inserts in one case>
