Общий каталог Mitsubishi 2020 - 2021 - страница 1337

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

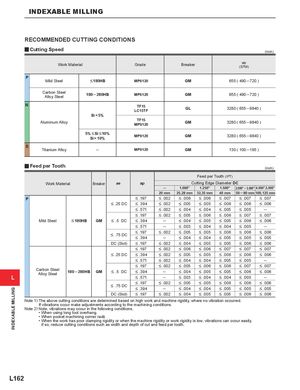

INDEXABLE MILLING RECOMMENDED CUTTING CONDITIONS y Cutting Speed (inch) Work Material Grade Breaker vc (SFM) P Mild Steel < 180HB MP6120 GM 655 ( 490 ─ 720 ) Carbon Steel 180 ─ 280HB MP6120 GM 655 ( 490 ─ 720 ) Alloy Steel N TF15 GL 3280 ( 655 ─ 9840 ) LC15TF Si < 5% TF15 Aluminum Alloy GM 3280 ( 655 ─ 9840 ) MP9120 5% < Si < 10% MP9120 GM 3280 ( 655 ─ 9840 ) Si > 10% S Titanium Alloy ─ MP9120 GM 130 ( 100 ─ 195 ) y Feed per Tooth (inch) Feed per Tooth (IPT) Work Material Breaker ae ap Cutting Edge Diameter DC ─ 1.000" 1.250" 1.500" 2.000" ─ 3.000" 4.000",5.000" 20 mm 25,28 mm 32,35 mm 40 mm 50 ─ 80 mm 100,125 mm P < .197 < .002 < .006 < .006 < .007 < .007 < .007 < .25 DC < .394 < .002 < .005 < .005 < .006 < .006 < .006 < .571 < .002 < .004 < .004 < .005 < .005 ─ < .197 < .002 < .005 < .006 < .006 < .007 < .007 Mild Steel < 180HB GM < .5 DC < .394 ─ < .004 < .005 < .005 < .006 < .006 < .571 ─ < .003 < .004 < .004 < .005 ─ < .197 < .002 < .005 < .005 < .006 < .006 < .006 < .75 DC < .394 ─ < .004 < .004 < .005 < .005 < .005 DC (Slot) < .197 < .002 < .004 < .005 < .005 < .006 < .006 < .197 < .002 < .006 < .006 < .007 < .007 < .007 < .25 DC < .394 < .002 < .005 < .005 < .006 < .006 < .006 < .571 < .002 < .004 < .004 < .005 < .005 ─ < .197 < .002 < .005 < .006 < .006 < .007 < .007 Carbon Steel 180 ─ 280HB GM < .5 DC < .394 ─ < .004 < .005 < .005 < .006 < .006 Alloy Steel L < .571 ─ < .003 < .004 < .004 < .005 ─ < .197 < .002 < .005 < .005 < .006 < .006 < .006 < .75 DC < .394 ─ < .004 < .004 < .005 < .005 < .005 INDEXABLE MILLING DC (Slot) < .197 < .002 < .004 < .005 < .005 < .006 < .006 Note 1) The above cutting conditions are determined based on high work and machine rigidity, where no vibration occurred. If vibrations occur make adjustments according to the machining conditions. Note 2) Note, vibrations may occur in the following conditions. • When using long tool overhang. • When pocket machining corner radii. • When the work has poor clamping rigidity or when the machine rigidity or work rigidity is low, vibrations can occur easily, if so, reduce cutting conditions such as width and depth of cut and feed per tooth. L162
