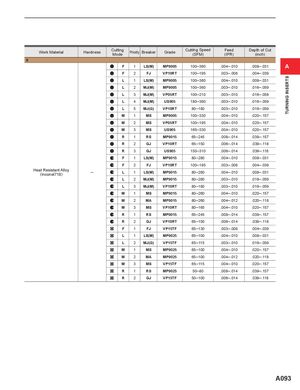

TURNING INSERTS Work Material Hardness CuttingModePriorityBreaker Grade Cutting Speed(SFM) Feed(IPR) Depth of Cut(inch) S F 1 LS(M) MP9005 100─360 .004─.010 .008─.031 A F 2 FJ VP10RT 100─195 .003─.008 .004─.039 L 1 LS(M) MP9005 100─360 .004─.010 .008─.031 L 2 MJ(M) MP9005 100─360 .003─.010 .016─.059 L 3 MJ(M) VP05RT 100─210 .003─.010 .016─.059 L 4 MJ(M) US905 180─360 .003─.010 .016─.059 L 5 MJ(G) VP10RT 80─180 .003─.010 .016─.059 M 1 MS MP9005 100─330 .004─.010 .020─.157 M 2 MS VP05RT 100─195 .004─.010 .020─.157 M 3 MS US905 165─330 .004─.010 .020─.157 R 1 RS MP9015 65─245 .008─.014 .039─.157 R 2 GJ VP10RT 65─150 .006─.014 .039─.118 R 3 GJ US905 150─310 .006─.014 .039─.118 F 1 LS(M) MP9015 80─280 .004─.010 .008─.031 F 2 FJ VP10RT 100─195 .003─.008 .004─.039 Heat Resistant Alloy(Inconel718)─ L 1 LS(M) MP9015 80─280 .004─.010 .008─.031 L 2 MJ(M) MP9015 80─280 .003─.010 .016─.059 L 3 MJ(M) VP10RT 80─180 .003─.010 .016─.059 M 1 MS MP9015 80─260 .004─.010 .020─.157 M 2 MA MP9015 80─260 .004─.012 .020─.118 M 3 MS VP10RT 80─165 .004─.010 .020─.157 R 1 RS MP9015 65─245 .008─.014 .039─.157 R 2 GJ VP10RT 65─150 .006─.014 .039─.118 F 1 FJ VP15TF 65─130 .003─.008 .004─.039 L 1 LS(M) MP9025 65─100 .004─.010 .008─.031 L 2 MJ(G) VP15TF 65─115 .003─.010 .016─.059 M 1 MS MP9025 65─100 .004─.010 .020─.157 M 2 MA MP9025 65─100 .004─.012 .020─.118 M 3 MS VP15TF 65─115 .004─.010 .020─.157 R 1 RS MP9025 50─80 .008─.014 .039─.157 R 2 GJ VP15TF 50─100 .006─.014 .039─.118 A093
