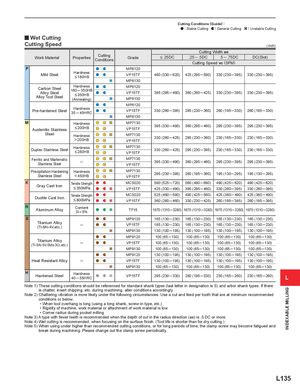

y Wet Cutting
Cutting Speed
(inch)
| Work Material | Properties | Cutting Conditions | Grade | .25 ─.5DC Cutting | .5 ─.75DC Widthae | DC(Slot) | |
| CuttingSpe | edvc(SFM) | ||||||
| P | MP6120 | ||||||
| Mild Steel | Hardness | VP15TF MP6130 | 460 (330─620) | 425 (295─590) | 330 (230─395) | 330 (230─395) | |
| Carbon Steel Alloy Steel Alloy Tool Steel | Hardness 180 ─350HB (Annealing) | MP6120 VP15TF MP6130 | 395 (295─460) | 360 (260─425) | 330 (230─395) | 330 (230─395) | |
| Pre-hardened Steel | Hardness 35 ─45HRC | MP6120 VP15TF MP6130 | 330 (260─395) | 295 (230─360) | 260 (195─330) | 260 (195─330) | |
| M Austenitic Stainless | Hardness | MP7130 VP15TF | 395 (330─490) | 360 (295─460) | 295 (230─395) | 295 (230─395) | |
| Steel | Hardness >200HB | MP7130 VP15TF | 330 (260─425) | 295 (230─360) | 230 (165─330) | 230 (165─330) | |
| Duplex Stainless Steel | Hardness | MP7130 VP15TF | 330 (260─425) | 295 (230─395) | 230 (165─330) | 230 (165─330) | |
| Ferritic and Martensitic Stainless Steel | ─ | MP7130 VP15TF | 395 (330─490) | 360 (295─460) | 295 (230─395) | 295 (230─395) | |
| Precipitation Hardening Stainless Steel | Hardness | MP7130 VP15TF | 295 (230─395) | 260 (195─360) | 195 (130─295) | 195 (130─295) | |
| K | Tensile Strength | MC5020 | 590(525─720) | 560(490─690) | 490(425─620) | 490(425─620) | |
| Gray Cast Iron | VP15TF | 425(330─490) | 395(295─460) | 330(260─395) | 330(260─395) | ||
| Tensile Strength | MC5020 | 525(460─590) | 490(425─560) | 425(360─490) | 425(360─490) | ||
| Ductile Cast Iron | VP15TF | 360 (260─460) | 330 (230─425) | 260 (195─395) | 260 (195─395) | ||
| N Aluminum Alloy | Content Si | TF15 | 1970 (1310─3280) | 1970 (1310─3280) | 1970 (1310─3280) | 1970 (1310─3280) | |
| S | MP9120 | 165(130─230) | 165(130─230) | 165(130─230) | 165(130─230) | ||
| Titanium Alloy (Ti-6Al-4Vetc) | ─ | VP15TF | 165(130─230) | 165(130─230) | 165(130─230) | 165(130─230) | |
| ,. | MP9130 | 130(100─195) | 130(100─195) | 130(100─195) | 130(100─195) | ||
| MP9120 | 100(65─130) | 100(65─130) | 100(65─130) | 100(65─130) | |||
| Titanium Alloy (Ti-5Al-5V-5Mo-3Cretc) | ─ | VP15TF | 100(65─130) | 100(65─130) | 100(65─130) | 100(65─130) | |
| ,. | MP9130 | 100(65─130) | 100(65─130) | 100(65─130) | 100(65─130) | ||
| MP9120 | 130(100─195) | 130(100─195) | 130(100─195) | 130(100─195) | |||
| Heat Resistant Alloy | ─ | VP15TF | 130(100─195) | 130(100─195) | 130(100─195) | 130(100─195) | |
| MP9130 | 100 (65─130) | 100 (65─130) | 100 (65─130) | 100 (65─130) | |||
| H Hardened Steel | Hardness 40 ─55HRC | VP15TF | 295 (230─330) | 280 (195─330) | 230 (165─260) | 230 (165─260) |
Note 1) These cutting conditions should be referenced for standard shank types (last letter in designation is S) and arbor shank types. If there is chatter, insert chipping, etc. during machining, alter conditions accordingly. Note 2) Chattering vibration is more likely under the following circumstances. Use a cut and feed per tooth that are at minimum recommended conditions or below.
- When tool overhang is long (using a long shank, screw-in type, etc.)
- Rigidity of machine, work material or attachment of work material is low
- Corner radius during pocket milling
Note 3) A type with fewer teeth is recommended when the depth of cut in the radius direction (ae) is .5 DC or more. Note 4) Wet cutting is recommended, when focusing on the surface finish. (Tool life is shorter than for dry cutting.) Note 5) When using under higher than recommended cutting conditions, or for long periods of time, the clamp screw may become fatigued and break during machining. Please change out the clamp screw periodically.
