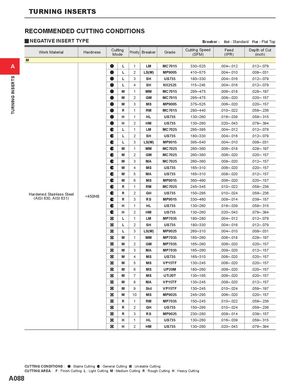

TURNING INSERTS TURNING INSERTS RECOMMENDED CUTTING CONDITIONS y NEGATIVE INSERT TYPE Breaker : Std : Standard Flat : Flat Top Work Material Hardness CuttingModePriorityBreaker Grade Cutting Speed(SFM) Feed(IPR) Depth of Cut(inch) M A L 1 LM MC7015 330─525 .004─.012 .012─.079 L 2 LS(M) MP9005 410─575 .004─.010 .008─.031 L 3 SH US735 180─330 .004─.016 .012─.079 L 4 SH NX2525 115─245 .004─.016 .012─.079 M 1 MM MC7015 295─475 .006─.018 .028─.197 M 2 GM MC7015 295─475 .006─.020 .020─.157 M 3 MS MP9005 375─525 .006─.020 .020─.157 R 1 RM MC7015 280─440 .010─.022 .059─.236 H 1 HL US735 130─260 .016─.039 .059─.315 H 2 HM US735 130─260 .020─.043 .079─.394 L 1 LM MC7025 295─395 .004─.012 .012─.079 L 2 SH US735 180─330 .004─.016 .012─.079 L 3 LS(M) MP9015 395─540 .004─.010 .008─.031 M 1 MM MC7025 260─360 .006─.018 .028─.197 M 2 GM MC7025 260─360 .006─.020 .020─.157 M 3 MA MC7025 260─360 .008─.020 .012─.157 M 4 MS US735 165─310 .006─.020 .020─.157 M 5 MA US735 165─310 .008─.020 .012─.157 M 6 MS MP9015 360─490 .006─.020 .020─.157 R 1 RM MC7025 245─345 .010─.022 .059─.236 Hardened Stainless Steel(AISI 630, AISI 631)<450HB R 2 GH US735 150─295 .010─.024 .059─.236R3RSMP9015330─460.008─.014.039─.157 H 1 HL US735 130─260 .016─.039 .059─.315 H 2 HM US735 130─260 .020─.043 .079─.394 L 1 LM MP7035 180─280 .004─.012 .012─.079 L 2 SH US735 180─330 .004─.016 .012─.079 L 3 LS(M) MP9025 260─310 .004─.010 .008─.031 M 1 MM MP7035 165─260 .006─.018 .028─.197 M 2 GM MP7035 165─260 .006─.020 .020─.157 M 3 MA MP7035 165─260 .008─.020 .012─.157 M 4 MS US735 165─310 .006─.020 .020─.157 M 5 MS VP15TF 130─245 .006─.020 .020─.157 M 6 MS UP20M 180─260 .006─.020 .020─.157 M 7 MS UTi20T 130─195 .006─.020 .020─.157 M 8 MA VP15TF 130─245 .008─.020 .012─.157 M 9 Std VP15TF 130─245 .010─.024 .059─.197 M 10 MS MP9025 245─295 .006─.020 .020─.157 R 1 RM MP7035 150─245 .010─.022 .059─.236 R 2 GH US735 150─295 .010─.024 .059─.236 R 3 RS MP9025 230─280 .008─.014 .039─.157 H 1 HL US735 130─260 .016─.039 .059─.315 H 2 HM US735 130─260 .020─.043 .079─.394 CUTTING CONDITIONS : : Stable Cutting : General Cutting : Unstable Cutting CUTTING AREA : F : Finish Cutting L : Light Cutting M : Medium Cutting R : Rough Cutting H : Heavy Cutting A088
