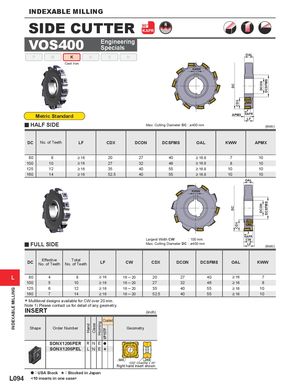

INDEXABLE MILLING SIDE CUTTER 90° KAPR VOS400 Engineering Specials OAL P M K N S H Cast Iron KWW DCSFMS DCON DC CDX APMX KAPR Metric Standard LF y HALF SIDE Max. Cutting Diameter DC : ø400 mm (mm) DC No. of Teeth LF CDX DCON DCSFMS OAL KWW APMX 80 8 > 16 20 27 40 > 16.8 7 10 100 10 > 16 27 32 46 > 16.8 8 10 125 12 > 16 35 40 55 > 16.8 10 10 160 14 > 16 52.5 40 55 > 16.8 10 10 OAL KWW DCSFMS DCON DC CDX KAPR Largest Width CW : 100 mm CW y FULL SIDE Max. Cutting Diameter DC : ø400 mm LF (mm) Effective Total DC No. of Teeth No. of Teeth LF CW CDX DCON DCSFMS OAL KWW L 80 4 8 > 16 16 ─ 20 20 27 40 > 16 7 100 5 10 > 16 16 ─ 20 27 32 46 > 16 8 125 6 12 > 16 16 ─ 20 35 40 55 > 16 10 INDEXABLE MILLING 160 7 14 > 16 16 ─ 20 52.5 40 55 > 16 10 * Multilevel designs available for CW over 20 mm. Note 1) Please contact us for detail of any geometry. INSERT (inch) Coated Horning Class Hand Shape Order Number Geometry VP15TF SONX1206PER R N E a SONX1206PEL L N E s .500 .248 .020" Chamfer x 45° Right hand insert shown. a : USA Stock s : Stocked in Japan L094 <10 inserts in one case>
