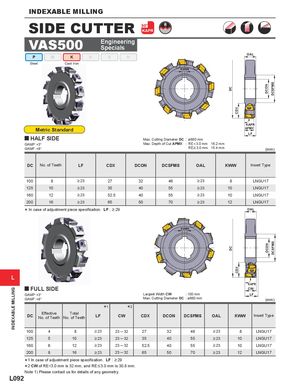

INDEXABLE MILLING SIDE CUTTER 90° KAPR VAS500 Engineering Specials OAL P M K N S H Steel Cast Iron KWW DCSFMS DCON DC CDX KAPR APMX Metric Standard LF y HALF SIDE Max. Cutting Diameter DC : ø660 mm GAMP : +3° Max. Depth of Cut APMX : RE < 3.0 mm 16.2 mm GAMF : +8° RE > 3.0 mm 15.4 mm (mm) DC No. of Teeth LF CDX DCON DCSFMS OAL KWW Insert Type 100 8 > 23 27 32 46 > 23 8 LNGU17 125 10 > 23 35 40 55 > 23 10 LNGU17 160 12 > 23 52.5 40 55 > 23 10 LNGU17 200 16 > 23 65 50 70 > 23 12 LNGU17 * In case of adjustment piece specification. LF : > 29 OAL KWW DCSFMS DCON DC CDX L KAPR y FULL SIDE CW INDEXABLE MILLING GAMP : +3° Largest Width CW : 100 mm LF GAMF : +8° Max. Cutting Diameter DC : ø660 mm (mm) * 1 * 2 Effective Total DC LF CW CDX DCON DCSFMS OAL KWW Insert Type No. of Teeth No. of Teeth 100 4 8 > 23 23 ─ 32 27 32 46 > 23 8 LNGU17 125 5 10 > 23 23 ─ 32 35 40 55 > 23 10 LNGU17 160 6 12 > 23 23 ─ 32 52.5 40 55 > 23 10 LNGU17 200 8 16 > 23 23 ─ 32 65 50 70 > 23 12 LNGU17 *12 InCWcase of adjustment piece specification. LF : > 29 * of RE<3.0 mm is 32 mm, and RE < 3.0 mm is 30.8 mm. Note 1) Please contact us for details of any geometry. L092
