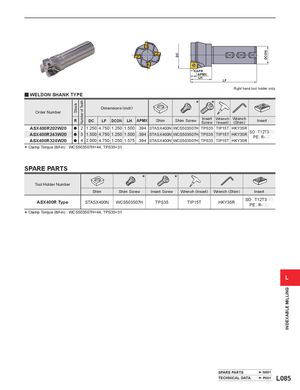

DCON DC KAPR APMX LH LF Right hand tool holder only. y WELDON SHANK TYPE * * Number of Teeth Stock Dimensions (inch) Order Number R Insert Wrench Wrench APMX Shim Screw DC LF DCON LH Shim Screw (Insert) (Shim) Insert ASX400R202W20 a 2 1.250 4.750 1.250 1.500 .394 STASX400N WCS503507H TPS35 TIP15T HKY35R SOpT12T3pp ASX400R243W20 a 3 1.500 4.750 1.250 1.500 .394 STASX400N WCS503507H TPS35 TIP15T HKY35R PEpR-pp ASX400R324W20 a 4 2.000 4.750 1.250 1.575 .394 STASX400N WCS503507H TPS35 TIP15T HKY35R * Clamp Torque (lbf-in) : WCS503507H=44, TPS35=31 SPARE PARTS * * Tool Holder Number Shim Shim Screw Insert Screw Wrench (Insert) Wrench (Shim) Insert SOpT12T3pp ASX400R Type STASX400N WCS503507H TPS35 TIP15T HKY35R PEpR-pp * Clamp Torque (lbf-in) : WCS503507H=44, TPS35=31 L INDEXABLE MILLING SPARE PARTS N001 TECHNICAL DATA P001 L085
