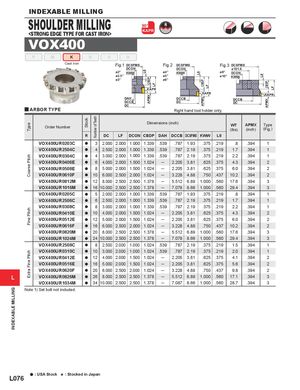

Общий каталог Mitsubishi 2020 - 2021 - страница 1251
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
SHOULDER MILLINGINDEXABLE MILLING
<STRONG EDGE TYPE FOR CAST IRON> KAPR
VOX400
P M K N S H
| Cast Iron Fig.1 DCSFMS | Fig.2 | DCSFMS | Fig.3 | DCSFMS | |
| DCON | DCON | ø101.6 | |||
| ø2" | KWW | ø4" | KWW | ø8" | DCON |
| ø2.5" | ø5" | ø10" | KWW | ||
| ø3" | ø6" | ||||
| KAPR | |||||
| KAPR | KAPR | ||||
| DAH | DCCB | DCCB | |||
| DCCB | DC | DC |
DC y ARBOR TYPE Right hand tool holder only.
| Type Order Number | Stock | mber of Teeth | Dime | nsions | (inch) | WT (lbs) | APMX (inch) | Type (Fig.) | ||||||
| R | Nu | DC | LF | DCON | CBDP | DAH | DCCB | DCSFMS | KWW | L8 | ||||
| VOX400UR0203C | a | 3 | 2.000 | 2.000 | 1.000 | 1.339 | .539 | .787 | 1.93 | .375 | .219 | .8 | .394 | 1 |
| VOX400UR2504C | a | 4 | 2.500 | 2.000 | 1.000 | 1.339 | .539 | .787 | 2.19 | .375 | .219 | 1.7 | .394 | 1 |
| VOX400UR0304C tch | a | 4 | 3.000 | 2.000 | 1.000 | 1.339 | .539 | .787 | 2.19 | .375 | .219 | 2.2 | .394 | 1 |
| VOX400UR0406E e Pi | a | 6 | 4.000 | 2.000 | 1.500 | 1.024 | ─ | 2.205 | 3.81 | .625 | .375 | 4.3 | .394 | 2 |
| VOX400UR0508E ars | a | 8 | 5.000 | 2.000 | 1.500 | 1.024 | ─ | 2.205 | 3.81 | .625 | .375 | 6.0 | .394 | 2 |
| VOX400UR0610F Co | a | 10 | 6.000 | 2.500 | 2.000 | 1.024 | ─ | 3.228 | 4.88 | .750 | .437 | 10.2 | .394 | 2 |
| VOX400UR0812M | a | 12 | 8.000 | 2.500 | 2.500 | 1.378 | ─ | 5.512 | 6.89 | 1.000 | .560 | 17.6 | .394 | 3 |
| VOX400UR1016M | a | 16 | 10.000 | 2.500 | 2.500 | 1.378 | ─ | 7.078 | 8.66 | 1.000 | .560 | 29.4 | .394 | 3 |
| VOX400UR0205C | a | 5 | 2.000 | 2.000 | 1.000 | 1.339 | .539 | .787 | 1.93 | .375 | .219 | .8 | .394 | 1 |
| VOX400UR2506C | a | 6 | 2.500 | 2.000 | 1.000 | 1.339 | .539 | .787 | 2.19 | .375 | .219 | 1.7 | .394 | 1 |
| VOX400UR0308C h | a | 8 | 3.000 | 2.000 | 1.000 | 1.339 | .539 | .787 | 2.19 | .375 | .219 | 2.2 | .394 | 1 |
| VOX400UR0410E Pitc | a | 10 | 4.000 | 2.000 | 1.500 | 1.024 | ─ | 2.205 | 3.81 | .625 | .375 | 4.3 | .394 | 2 |
| VOX400UR0512E ine | a | 12 | 5.000 | 2.000 | 1.500 | 1.024 | ─ | 2.205 | 3.81 | .625 | .375 | 6.0 | .394 | 2 |
| VOX400UR0616F F | a | 16 | 6.000 | 2.500 | 2.000 | 1.024 | ─ | 3.228 | 4.88 | .750 | .437 | 10.2 | .394 | 2 |
| VOX400UR0820M | a | 20 | 8.000 | 2.500 | 2.500 | 1.378 | ─ | 5.512 | 6.89 | 1.000 | .560 | 17.6 | .394 | 3 |
| VOX400UR1024M | a | 24 | 10.000 | 2.500 | 2.500 | 1.378 | ─ | 7.078 | 8.66 | 1.000 | .560 | 29.4 | .394 | 3 |
| VOX400UR2508C | a | 8 | 2.500 | 2.000 | 1.000 | 1.024 | .539 | .787 | 2.19 | .375 | .219 | 1.5 | .394 | 1 |
| VOX400UR0310C ch | a | 10 | 3.000 | 2.000 | 1.000 | 1.024 | .539 | .787 | 2.19 | .375 | .219 | 2.0 | .394 | 1 |
| VOX400UR0412E Pit | a | 12 | 4.000 | 2.000 | 1.500 | 1.024 | ─ | 2.205 | 3.81 | .625 | .375 | 4.1 | .394 | 2 |
| VOX400UR0516E Fine | a | 16 | 5.000 | 2.000 | 1.500 | 1.024 | ─ | 2.205 | 3.81 | .625 | .375 | 5.6 | .394 | 2 |
| VOX400UR0620F tra | a | 20 | 6.000 | 2.500 | 2.000 | 1.024 | ─ | 3.228 | 4.88 | .750 | .437 | 9.8 | .394 | 2 |
| VOX400UR0826M Ex | a | 26 | 8.000 | 2.500 | 2.500 | 1.378 | ─ | 5.512 | 6.89 | 1.000 | .560 | 17.1 | .394 | 3 |
| VOX400UR1034M | a | 34 | 10.000 | 2.500 | 2.500 | 1.378 | ─ | 7.087 | 8.66 | 1.000 | .560 | 28.7 | .394 | 3 |
Note 1) Set bolt not included.
