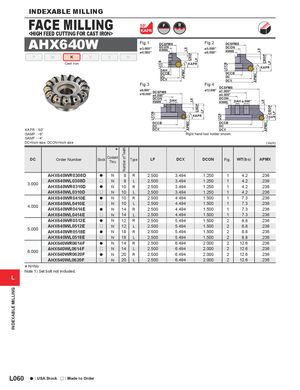

<HIGH FEED CUTTING FOR CAST IRON> KAPR
AHX640W
| Fig.1 | DCSFMS | Fig.2 | DCSFMS |
| ø3.000" | DCON | ø5.000" | DCON |
| KWW | KWW | ||
| ø4.000" | ø6.000" |
P M K N S H
Cast Iron KAPR KAPR DAH DCCB DCCB
DC DC DCX DCX Fig.3 Fig.4 DCSFMS
| ø8.000" | DCSFMS | ø12.000" ø7.000" | |
| ø10.000" ø4.000" | ø4.000" | ||
| DCON | DAH DCON | ||
| KWW | KWW | DAH ø.866" | |
| CBDP LF | |||
| KAPR | KAPR | ||
| DCCB | DCCB | ||
| DC | DC | ||
| KAPR : 50° | DCX | DCX |
GAMP : -6° Right hand tool holder shown. GAMF : -4° DC=Inch size, DCON=Inch size (inch)
| DC | Order Number | Stock | Coolant Thru | Number of Teeth | Type | LF | DCX | DCON | Fig. | WT(lbs) | APMX |
| AHX640WR0308D | a | N | 8 | R | 2.500 | 3.494 | 1.250 | 1 | 4.2 | .236 | |
| 3000 | AHX640WL0308D | r | N | 8 | L | 2.500 | 3.494 | 1.250 | 1 | 4.2 | .236 |
| . | AHX640WR0310D | a | N | 10 | R | 2.500 | 3.494 | 1.250 | 1 | 4.2 | .236 |
| AHX640WL0310D | r | N | 10 | L | 2.500 | 3.494 | 1.250 | 1 | 4.2 | .236 | |
| AHX640WR0410E | a | N | 10 | R | 2.500 | 4.494 | 1.500 | 1 | 7.3 | .236 | |
| AHX640WL0410E | r | N | 10 | L | 2.500 | 4.494 | 1.500 | 1 | 7.3 | .236 | |
| 4.000 | AHX640WR0414E | a | N | 14 | R | 2.500 | 4.494 | 1.500 | 1 | 7.3 | .236 |
| AHX640WL0414E | r | N | 14 | L | 2.500 | 4.494 | 1.500 | 1 | 7.3 | .236 | |
| AHX640WR0512E | a | N | 12 | R | 2.500 | 5.494 | 1.500 | 2 | 8.8 | .236 | |
| AHX640WL0512E | r | N | 12 | L | 2.500 | 5.494 | 1.500 | 2 | 8.8 | .236 | |
| 5.000 | AHX640WR0518E | a | N | 18 | R | 2.500 | 5.494 | 1.500 | 2 | 8.8 | .236 |
| AHX640WL0518E | r | N | 18 | L | 2.500 | 5.494 | 1.500 | 2 | 8.8 | .236 | |
| AHX640WR0614F | a | N | 14 | R | 2.500 | 6.494 | 2.000 | 2 | 12.6 | .236 | |
| AHX640WL0614F | r | N | 14 | L | 2.500 | 6.494 | 2.000 | 2 | 12.6 | .236 | |
| 6.000 | AHX640WR0620F | a | N | 20 | R | 2.500 | 6.494 | 2.000 | 2 | 12.6 | .236 |
| AHX640WL0620F | r | N | 20 | L | 2.500 | 6.494 | 2.000 | 2 | 12.6 | .236 |
* N=No
Note 1) Set bolt not included.
