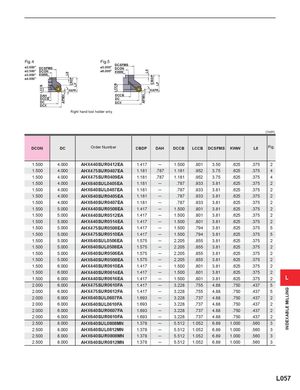

Fig.4 Fig.5 DCSFMS
| ø2.000" | DCSFMS | ø5.000" | DCON |
| ø2.500" | DCON | ø6.000" | KWW |
ø3.000" KWW ø4.000" CBDP LF KAPR KAPR
DAH DCCB DCCB DC DC DCX DCX Right hand tool holder only.
(inch)
| DCON | DC | Order Number | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | Fig. |
| 1.500 | 4.000 | AHX440SUR0412EA | 1.417 | ─ | 1.500 | .801 | 3.50 | .625 | .375 | 2 |
| 1.500 | 4.000 | AHX475SUR0407EA | 1.181 | .787 | 1.181 | .952 | 3.75 | .625 | .375 | 4 |
| 1.500 | 4.000 | AHX475SUR0409EA | 1.181 | .787 | 1.181 | .952 | 3.75 | .625 | .375 | 4 |
| 1.500 | 4.000 | AHX640SUL0405EA | 1.181 | ─ | .787 | .933 | 3.81 | .625 | .375 | 2 |
| 1.500 | 4.000 | AHX640SUL0407EA | 1.181 | ─ | .787 | .933 | 3.81 | .625 | .375 | 2 |
| 1.500 | 4.000 | AHX640SUR0405EA | 1.181 | ─ | .787 | .933 | 3.81 | .625 | .375 | 2 |
| 1.500 | 4.000 | AHX640SUR0407EA | 1.181 | ─ | .787 | .933 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX440SUR0508EA | 1.417 | ─ | 1.500 | .801 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX440SUR0512EA | 1.417 | ─ | 1.500 | .801 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX440SUR0514EA | 1.417 | ─ | 1.500 | .801 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX475SUR0508EA | 1.417 | ─ | 1.500 | .794 | 3.81 | .625 | .375 | 5 |
| 1.500 | 5.000 | AHX475SUR0510EA | 1.417 | ─ | 1.500 | .794 | 3.81 | .625 | .375 | 5 |
| 1.500 | 5.000 | AHX640SUL0506EA | 1.575 | ─ | 2.205 | .855 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX640SUL0508EA | 1.575 | ─ | 2.205 | .855 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX640SUR0506EA | 1.575 | ─ | 2.205 | .855 | 3.81 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX640SUR0508EA | 1.575 | ─ | 2.205 | .855 | 3.81 | .625 | .375 | 2 |
| 1.500 | 6.000 | AHX440SUR0610EA | 1.417 | ─ | 1.500 | .801 | 3.81 | .625 | .375 | 2 |
| 1.500 | 6.000 | AHX440SUR0614EA | 1.417 | ─ | 1.500 | .801 | 3.81 | .625 | .375 | 2 |
| 1.500 | 6.000 | AHX440SUR0616EA | 1.417 | ─ | 1.500 | .801 | 3.81 | .625 | .375 | 2 |
| 2.000 | 6.000 | AHX475SUR0610FA | 1.417 | ─ | 3.228 | .755 | 4.88 | .750 | .437 | 5 |
| 2.000 | 6.000 | AHX475SUR0612FA | 1.417 | ─ | 3.228 | .755 | 4.88 | .750 | .437 | 5 |
| 2.000 | 6.000 | AHX640SUL0607FA | 1.693 | ─ | 3.228 | .737 | 4.88 | .750 | .437 | 2 |
| 2.000 | 6.000 | AHX640SUL0610FA | 1.693 | ─ | 3.228 | .737 | 4.88 | .750 | .437 | 2 |
| 2.000 | 6.000 | AHX640SUR0607FA | 1.693 | ─ | 3.228 | .737 | 4.88 | .750 | .437 | 2 |
| 2.000 | 6.000 | AHX640SUR0610FA | 1.693 | ─ | 3.228 | .737 | 4.88 | .750 | .437 | 2 |
| 2.500 | 8.000 | AHX640SUL0808MN | 1.378 | ─ | 5.512 | 1.052 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 8.000 | AHX640SUL0812MN | 1.378 | ─ | 5.512 | 1.052 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 8.000 | AHX640SUR0808MN | 1.378 | ─ | 5.512 | 1.052 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 8.000 | AHX640SUR0812MN | 1.378 | ─ | 5.512 | 1.052 | 6.89 | 1.000 | .560 | 3 |
