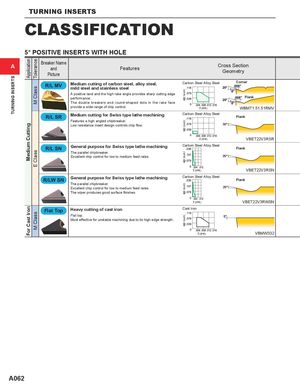

TURNING INSERTS ApplicationMedium CuttingFor Cast Iron ToleranceM ClassE ClassM Class ap (inch)ap (inch)ap (inch)ap (inch)ap (inch) TURNING INSERTS CLASSIFICATION 5° POSITIVE INSERTS WITH HOLE A Breaker Nameand FeaturesPicture Cross SectionGeometry Medium cutting of carbon steel, alloy steel, Carbon Steel·Alloy Steel Corner mild steel and stainless steel A positive land and the high rake angle provides sharp cutting edge performance. Flank The double breakers and round-shaped dots in the rake face provide a wide range of chip control. f (IPR) WBMT1.51.51RMV Medium cutting for Swiss type lathe machining Carbon Steel·Alloy Steel Flank Features a high angled chipbreaker. Low resistance insert design controls chip flow. 30° f (IPR) VBET22V3RSR General purpose for Swiss type lathe machining Carbon Steel·Alloy Steel Flank The parallel chipbreaker. Excellent chip control for low to medium feed rates. 20° f (IPR) VBET22V3RSN General purpose for Swiss type lathe machining Carbon Steel·Alloy Steel Flank The parallel chipbreaker. Excellent chip control for low to medium feed rates. 20° The wiper produces good surface finishes. f (IPR) VBET22V3RWSN Flat Top Heavy cutting of cast iron Cast Iron Flat top. 0° Most effective for unstable machining due to its high edge strength. f (IPR) VBMW332 A062
