CARBIDE

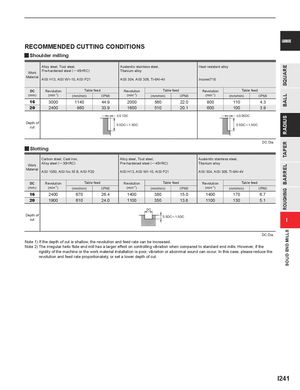

RECOMMENDED CUTTING CONDITIONS
yShoulder milling
| Work Material | Alloy steel, Tool Pre-hardened st AISI H13, AISI W | steel, eel (─45HRC) 1-10, AISI P21 | Austenitic stainle Titanium alloy AISI 304, AISI 3 | ss steel, 06, Ti-6Al-4V | Heat resistant al Inconel718 | loy | |||
| DC | Revolution | Table fe | ed | Revolution | Table f | eed | Revolution | Table f | eed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 16 | 3000 | 1140 | 44.9 | 2000 | 560 | 22.0 | 800 | 110 | 4.3 |
| 20 | 2400 | 860 | 33.9 | 1600 | 510 | 20.1 | 600 | 100 | 3.9 |
| Depth of cut | 0 | .5DC─1.5DC 0.1DC | 0.5DC─1. | 5DC DC:Dia. |
y Slotting
| Work Material | Carbon steel, Ca Alloy steel (─30 AISI 1050, AISI N | st iron, HRC) o 35 B, AISI P20 | Alloy steel, Too Pre-hardened s AISI H13, AISI | l steel, teel (─45HRC) W1-10, AISI P21 | Austenitic stainle Titanium alloy AISI 304, AISI 30 | ss steel, 6, Ti-6Al-4V | |||
| DC | Revolution | Table f | eed | Revolution | Table f | eed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 16 | 2400 | 670 | 26.4 | 1400 | 380 | 15.0 | 1400 | 170 | 6.7 |
| 20 | 1900 | 610 | 24.0 | 1100 | 350 | 13.8 | 1100 | 130 | 5.1 |
| Depth of cut | 0.5DC─ DC | 1.5DC | DC:Dia. |
Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the work material installation is poor, vibration or abonrmal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut.
