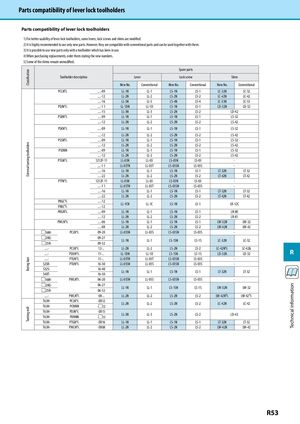

ClassificationExternal turning toolholdersBoring barsTurning mill Technical information Parts compatibility of lever lock toolholders Parts compatibility of lever lock toolholders 1) For better usability of lever lock toolholders, some levers, lock screws and shims are modified. 2) It is highly recommended to use only new parts. However, they are compatible with conventional parts and can be used together with them. 3) It is possible to use new parts only with a toolholder which has been in use. 4) When purchasing replacements, order them stating the new numbers. 5) Some of the shims remain unmodified. Spare parts Toolholder description Lever Lock screw Shim New No. Conventional New No. Conventional New No. Conventional PCLN& ....-09 LL-1N LL-1 LS-1N LS-1 LC-32N LC-32 ....-12 LL-2N LL-2 LS-2N LS-2 LC-42N LC-42 ....-16 LL-5N LL-5 LS-4N LS-4 LC-53N LC-53 PDJN& ....-1 1 LL-1DN LL-1D LS-1N LS-1 LD-32N LD-32 ....-15 LL-3N LL-3 LS-2N LS-2 LD-42 PSBN& ....-09 LL-1N LL-1 LS-1N LS-1 LS-32 ....-12 LL-2N LL-2 LS-2N LS-2 LS-42 PSKN& ....-09 LL-1N LL-1 LS-1N LS-1 LS-32 ....-12 LL-2N LL-2 LS-2N LS-2 LS-42 PSSN& ....-09 LL-1N LL-1 LS-1N LS-1 LS-32 ....-12 LL-2N LL-2 LS-2N LS-2 LS-42 PSDNN ....-09 LL-1N LL-1 LS-1N LS-1 LS-32 ....-12 LL-2N LL-2 LS-2N LS-2 LS-42 PTGN& 1212F-11 LL-03N LL-03 LS-03N LS-03 - ....-1 1 LL-03TN LL-03T LS-03SN LS-03S - ....-16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 ....-22 LL-2N LL-2 LS-2N LS-2 LT-42N LT-42 PTFN& 1212F-11 LL-03N LL-03 LS-03N LS-03 - ....-1 1 LL-03TN LL-03T LS-03SN LS-03S - ....-16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 ....-22 LL-2N LL-2 LS-2N LS-2 LT-42N LT-42 PRGC&PRXC& ....-12....-12 LL-1CN LL-1C LS-1N LS-1 LR-12C PRGN& ....-09 LL-1N LL-1 LS-1N LS-1 LR-80 ....-12 LL-2N LL-2 LS-2N LS-2 LR-81 PWLN& ....-06 LL-1N LL-1 LS-1N LS-1 LW-32N LW-32 ....-08 LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 16M- PCLN& 09-20 LL-03SN LL-03S LS-03SN LS-03S - 20Q- 09-27 LL-1N LL-1 LS-1SN LS-1S LC-32N LC-32 25R- 09-32 ....- PCLN& 12-.. LL-2N LL-2 LS-2N LS-2 LC-42N& LC-42&....-PDUN&11-..LL-1DNLL-1DLS-1SNLS-1SLD-32NLD-32R ....- PTUN& 11-.. LL-03TN LL-03T LS-03SN LS-03S - S25R- PTUN& 16-30 LL-03SN LL-03S LS-03SN LS-03S - S32S-S40T- 16-4016-50 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 16M- PWLN& 06-20 LL-03SN LL-03S LS-03SN LS-03S - 20Q- 06-27 LL-1N LL-1 LS-1SN LS-1S LW-32N LW-32 25R- 06-32 ....- PWLN& 08-.. LL-2N LL-2 LS-2N LS-2 LW-42N& LW-42& T63H- PCLN& -DX12 T63H- PCMNN LL-2N-12 LL-2 LS-2N LS-2 LC-42N LC-42 T63H- PDJN& -DX15 T63H- PDNNN - 15 LL-3N LL-3 LS-2N LS-2 LD-42 T63H- PTGN& -DX16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 T63H- PWLN& -DX08 LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 R53
