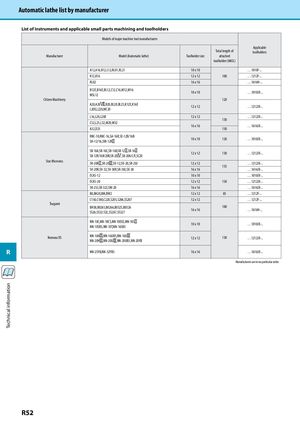

Automatic lathe list by manufacturer List of instruments and applicable small parts machining and toolholders Models of major machine tool manufacturers Applicable Total length of toolholders Manufacturer Model (Automatic lathe) Toolholder size attached toolholder (MAX.) A12,A16,B12,L12,RL01,RL21 10 x 10 …1010F-.. K12,K16 12 x 12 100 …1212F-.. RL02 16 x 16 …1616H-.. B12E,B16E,BL12,C12,C16,M12,M16 10 x 10 …1010JX-.. MSL12 Citizen Machinery 120 A20,A20 ,B20,BL20,BL25,K12E,K16E 12 x 12 …1212JX-.. L20X,L220,MC20 L16,L20,L20E 12 x 12 …1212JX-.. 130 C32,L25,L32,M20,M32 16 x 16 …1616JX-.. A32,D25 150 RNC-10,RNC-16,SA-16R,SE-12B/16B 10 x 10 120 …1010JX-.. SH-12/16,SW-12R SB-16A,SB-16C,SB-16D,SB-12 ,SB-16 12 x 12 130 …1212JX-.. SB-12R/16R/20R,SR-20 ,SB-20A/C/E,SC20 Star Micronics SR-20R ,SR-20 ,SV-12,SV-20,SR-20J 12 x 12 …1212JX-.. 135 SV-20R,SV-32,SV-38R,SR-38J,SX-38 16 x 16 …1616JX-.. ECAS-12 10 x 10 …1010JX-.. ECAS-20 12 x 12 150 …1212JX-.. SR-25J,SR-32J,SW-20 16 x 16 …1616JX-.. B0,BH20,BM,BW2 12 x 12 85 …1212F-.. C150,C180,C220,S205,S206,SS207 12 x 12 …1212F-.. Tsugami BH38,B0265,B0266,B0325,B0326 100 16 x 16 …1616H-.. SS26,SS32/32L,SS267,SS327 NN-10C,NN-10CS,NN-10EX2,NN-10S 10 x 10 …1010JX-.. NN-10SB5,NN-10T,NN-16SB5 Nomura DS NN-16H ,NN-16UB5,NN-16U 130 12 x 12 …1212JX-.. NN-20H ,NN-20U ,NN-20UB5,NN-20YB R NN-25YB,NN-32YB5 16 x 16 …1616JX-.. Manufacturers are in no particular order. Technical information R52
