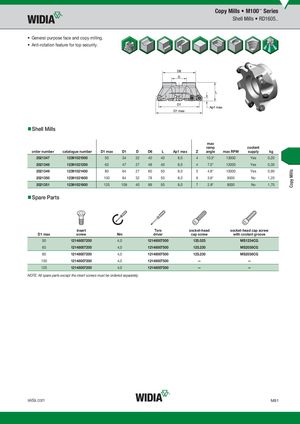

- General purpose face and copy milling.
- Anti-rotation feature for top security.
- Shell Mills
| order number | catalogue number | D1 max | D1 | D | D6 | L | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 2021347 | 12391021000 | 50 | 34 | 22 | 40 | 40 | 8,0 | 4 | 10.3° | 13000 | Yes | 0,20 |
| 2021348 | 12391021200 | 63 | 47 | 27 | 48 | 40 | 8,0 | 4 | 7.0° | 12000 | Yes | 0,30 |
| 2021349 | 12391021400 | 80 | 64 | 27 | 60 | 50 | 8,0 | 5 | 4.8° | 10000 | Yes | 0,90 |
| 2021350 | 12391021600 | 100 | 84 | 32 | 78 | 50 | 8,0 | 6 | 3.8° | 9000 | No | 1,20 |
| 2021351 | 12391021800 | 125 | 109 | 40 | 89 | 50 | 8,0 | 7 | 2.8° | 8000 | No | 1,70 |
- Spare Parts
| insert | Torx | socket-head | socket-head cap screw | ||
| D1 max | screw | Nm | driver | cap screw | with coolant groove |
| D1 max | insert screw | Nm | Torx driver | socket-head cap screw | socket-head cap screw with coolantgroove |
| 50 | 12148007200 | 4,0 | 12148007500 | 125.025 | MS1234CG |
| 63 | 12148007200 | 4,0 | 12148007500 | 125.230 | MS2038CG |
| 80 | 12148007200 | 4,0 | 12148007500 | 125.230 | MS2038CG |
| 100 | 12148007200 | 4,0 | 12148007500 | — | — |
| 125 | 12148007200 | 4,0 | 12148007500 | — | — |
