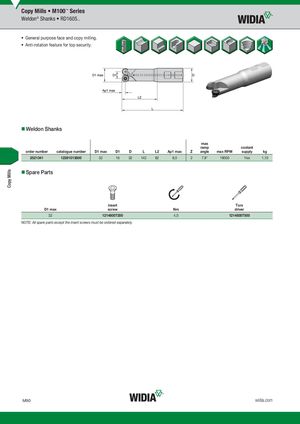

- General purpose face and copy milling.
- Anti-rotation feature for top security.
- Weldon Shanks
max ramp coolant
| order number | catalogue number | D1 max | D1 | D | L | L2 | Ap1 max | Z | angle | max RPM | supply | kg | |||
| 2021341 | 12391013800 | 32 | 16 | 32 | 142 | 82 | 8,0 | 2 | 7.8° | 19000 | Yes | 1,10 |
- Spare Parts
insert Torx
D1 max screw Nm driver
32 12148007200 4,0 12148007500
NOTE: All spare parts except the insert screws must be ordered separately.
