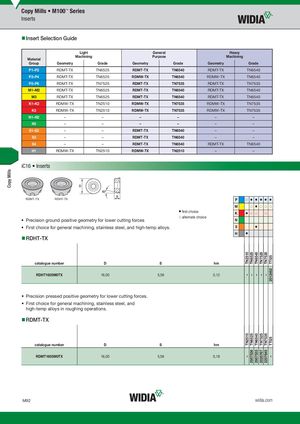

- Insert Selection Guide
| Light | General | Heavy | ||
| Machining | Purpose | Machining | ||
| Material |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | |||||
| P1–P2 | RDMT-TX | TN6525 | RDMT-TX | TN6540 | RDMT-TX | TN6540 | |||||
| P3–P4 | RDMT-TX | TN6525 | RDMW-TX | TN6540 | RDMW-TX | TN6540 | |||||
| P5–P6 | RDMT-TX | TN7525 | RDMT-TX | TN7535 | RDMT-TX | TN7535 | |||||
| M1–M2 | RDMT-TX | TN6525 | RDMT-TX | TN6540 | RDMT-TX | TN6540 | |||||
| M3 | RDMT-TX | TN6525 | RDMT-TX | TN6540 | RDMT-TX | TN6540 | |||||
| K1–K2 | RDMW-TX | TN2510 | RDMW-TX | TN7535 | RDMW-TX | TN7535 | |||||
| K3 | RDMW-TX | TN2510 | RDMW-TX | TN7535 | RDMW-TX | TN7535 | |||||
| N1–N2 | – | – | – | – | – | – | |||||
| N3 | – | – | – | – | – | – | |||||
| S1–S2 | – | – | RDMT-TX | TN6540 | – | – | |||||
| S3 | – | – | RDMT-TX | TN6540 | – | – | |||||
| S4 | – | – | RDMT-TX | TN6540 | RDMT-TX | TN6540 | |||||
| H1 | RDMW-TX | TN2510 | RDMW-TX | TN2510 | – | – |
iC16 Inserts
RDMT-TX RDHT-TX P
M fi rst choice K alternate choice
- Precision ground positive geometry for lower cutting forces N
- First choice for general machining, stainless steel, and high-temp alloys. S
H
- RDHT-TX
| catalogue number | D | S | hm |
| RDHT1605M0TX | 16,00 | 5,56 | 0,12 |
- Precision pressed positive geometry for lower cutting forces.
- First choice for general machining, stainless steel, and high-temp alloys in roughing operations.
- RDMT-TX
| catalogue number | D | S | hm |
| RDMT1605M0TX | 16,00 | 5,56 | 0,18 |
