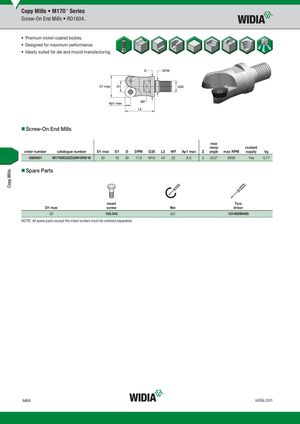

- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Screw-On End Mills
max ramp coolant
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | angle | max RPM | supply | kg | ||||
| 3926601 | M170D032Z02M16RD16 | 32 | 16 | 29 | 17,0 | M16 | 43 | 22 | 8,0 | 2 | 20.0° | 9950 | Yes | 0,17 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | ||
| 32 | 193.343 | 6,0 | 12148099400 |
NOTE: All spare parts except the insert screws must be ordered separately.
