- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.

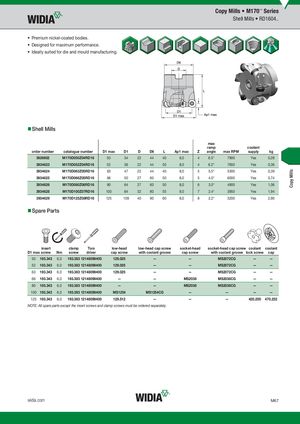

- Shell Mills
| order number | catalogue number | D1 max | D1 | D | D6 | L | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 3926602 | M170D050Z04RD16 | 50 | 34 | 22 | 44 | 40 | 8,0 | 4 | 8.5° | 7900 | Yes | 0,28 |
| 3934623 | M170D052Z04RD16 | 52 | 36 | 22 | 44 | 50 | 8,0 | 4 | 8.2° | 7650 | Yes | 0,36 |
| 3934624 | M170D063Z05RD16 | 63 | 47 | 22 | 44 | 40 | 8,0 | 5 | 5.5° | 5300 | Yes | 0,39 |
| 3934625 | M170D066Z05RD16 | 66 | 50 | 27 | 60 | 50 | 8,0 | 5 | 4.0° | 6000 | Yes | 0,74 |
| 3934626 | M170D080Z06RD16 | 80 | 64 | 27 | 60 | 50 | 8,0 | 6 | 3.0° | 4900 | Yes | 1,06 |
| 3934628 | M170D100Z07RD16 | 100 | 84 | 32 | 80 | 55 | 8,0 | 7 | 2.4° | 3950 | Yes | 1,94 |
| 3934629 | M170D125Z08RD16 | 125 | 109 | 40 | 90 | 60 | 8,0 | 8 | 2.2° | 3200 | Yes | 2,90 |
- Spare Parts
| insert | clamp | Torx | low-head | low-head cap screw | socket-head | socket-head cap screw | coolant | coolant | |||||||||
| D1 max screw | Nm | screw | driver | cap screw | with coolant groove | cap screw | with coolant groove | lock screw | cap | ||||||||
| 50 | 193.343 | 6,0 | 193.383 12148099400 | 129.025 | — | — | MS2072CG | — | — | ||||||||
| 52 | 193.343 | 6,0 | 193.383 12148099400 | 129.025 | — | — | MS2072CG | — | — | ||||||||
| 63 | 193.343 | 6,0 | 193.383 12148099400 | 129.025 | — | — | MS2072CG | — | — | ||||||||
| 66 | 193.343 | 6,0 | 193.383 12148099400 | — | — | MS2038 | MS2038CG | — | — | ||||||||
| 80 | 193.343 | 6,0 | 193.383 12148099400 | — | — | MS2038 | MS2038CG | — | — | ||||||||
| 100 | 193.343 | 6,0 | 193.383 12148099400 | MS1254 | MS1254CG | — | — | — | — | ||||||||
| 125 | 193.343 | 6,0 | 193.383 12148099400 | 129.512 | — | — | — | 420.200 | 470.232 |
NOTE: All spare parts except the insert screws and clamp screws must be ordered separately.
