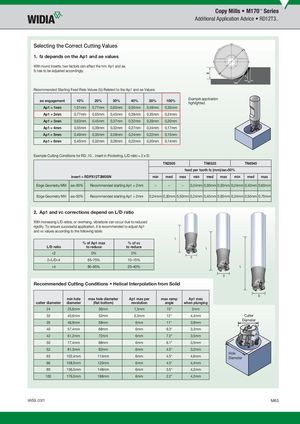

Additional Application Advice • RD12T3..
Selecting the Correct Cutting Values
1. fz depends on the Ap1 and ae values
With round inserts, two factors can affect the hm: Ap1 and ae. fz has to be adjusted accordingly.
Recommended Starting Feed Rate Values (fz) Related to the Ap1 and ae Values:
| ae engagement | 10% | 20% | 30% | 40% | 50% | 100% |
| Ap1 = 1mm | 1,01mm | 0,77mm | 0,63mm | 0,55mm | 0,49mm | 0,35mm |
| Ap1 = 2mm | 0,77mm | 0,55mm | 0,45mm | 0,39mm | 0,35mm | 0,24mm |
| Ap1 = 3mm | 0,63mm | 0,45mm | 0,37mm | 0,32mm | 0,28mm | 0,20mm |
| Ap1 = 4mm | 0,55mm | 0,39mm | 0,32mm | 0,27mm | 0,24mm | 0,17mm |
| Ap1 = 5mm | 0,49mm | 0,35mm | 0,28mm | 0,24mm | 0,22mm | 0,15mm |
| Ap1 = 6mm | 0,45mm | 0,32mm | 0,26mm | 0,22mm | 0,20mm | 0,14mm |
Example application highlighted.
Example Cutting Conditions for RD..10... Insert in Pocketing, L/D ratio = 2 x D:
| TN2505 | fee | d per too | TN6525 th fz (m | m)/ae>5 | 0% | TN6540 | |||||
| insert = R | DPX12T3M0SN | min | med | max | min | med | max | min | med | max | |
| Edge Geometry MM | ae>50% | Recommended starting Ap1 = 2mm | – | – | – | 0,24mm | 0,30mm | 0,50mm | 0,24mm | 0,40mm | 0,60mm |
| Edge Geometry MH | ae>50% | Recommended starting Ap1 = 2mm | 0,24mm | 0,30mm | 0,50mm | 0,24mm | 0,40mm | 0,65mm | 0,24mm | 0,50mm | 0,70mm |
2. Ap1 and vc corrections depend on L/D ratio
With increasing L/D ratios, or overhang, vibrations can occur due to reduced rigidity. To ensure successful application, it is recommended to adjust Ap1 and vc values according to the following table:
% of Ap1 max % of vc
L/D ratio to reduce to reduce
L
L
| L/D ratio | % of Ap1 max to reduce | % of vc to reduce |
| 0% | 0% | |
| 2 | 65–75% | 10–15% |
| >4 | 80–95% | 20–40% |
D
Recommended Cutting Conditions • Helical Interpolation from Solid
| min hole | max hole diameter | Ap1 max per | max ramp | Ap1 max | |||
| cutter diameter | diameter | (fl at bottom) | revolution | angle | when plunging |
24 25,6mm 36mm 1,3mm 15° 3mm
D
D
| cutter diameter | min hole diameter | max hole diameter (fl at bottom) | Ap1 max per revolution | max ramp angle | Ap1 max whenplunging |
| 24 | 25,6mm | 36mm | 1,3mm | 15° | 3mm |
| 32 | 40,6mm | 52mm | 5,3mm | 12° | 4,4mm |
| 35 | 46,9mm | 58mm | 6mm | 11° | 3,9mm |
| 40 | 57,4mm | 68mm | 6mm | 9.3° | 3,3mm |
| 42 | 61,2mm | 72mm | 6mm | 7.2° | 3,5mm |
| 50 | 77,4mm | 88mm | 6mm | 6.1° | 3,5mm |
| 52 | 81,3mm | 92mm | 6mm | 4.5° | 3,2mm |
| 63 | 102,4mm | 114mm | 6mm | 4.5° | 4,6mm |
| 66 | 108,5mm | 120mm | 6mm | 4.5° | 4,4mm |
| 80 | 136,5mm | 148mm | 6mm | 3.5° | 4,2mm |
| 100 | 176,5mm | 188mm | 6mm | 2.2° | 4,2mm |
Diameter
Hole Diameter
