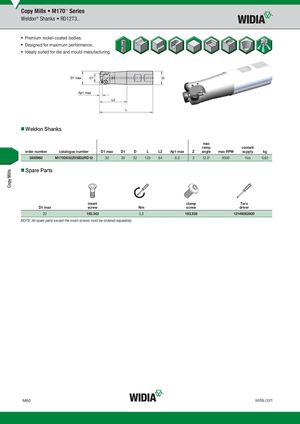

Weldon® Shanks RD12T3..
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Weldon Shanks
max ramp coolant
| order number | catalogue number | D1 max | D1 | D | L | L2 | Ap1 max | Z | angle | max RPM | supply | kg | |||
| 3930960 | M170D032Z03B32RD12 | 32 | 20 | 32 | 125 | 64 | 6,0 | 3 | 12.0° | 9500 | Yes | 0,63 |
- Spare Parts
| insert | clamp | Torx | |||
| D1 max | screw | Nm | screw | driver | |
| 32 | 193.342 | 3,5 | 193.338 | 12148082400 |
NOTE: All spare parts except the insert screws must be ordered separately.
