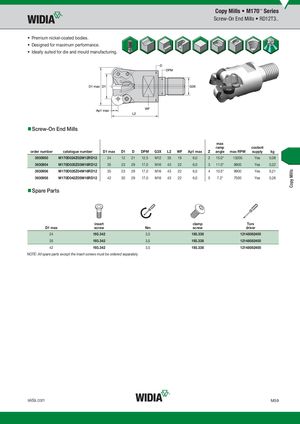

Screw-On End Mills RD12T3..
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Screw-On End Mills
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z max ramp angle | max RPM | coolant supply | kg |
| 3930950 | M170D024Z02M12RD12 | 24 | 12 | 21 | 12,5 | M12 | 35 | 19 | 6,0 | 2 15.0° | 13200 | Yes | 0,08 |
| 3930954 | M170D035Z03M16RD12 | 35 | 23 | 29 | 17,0 | M16 | 43 | 22 | 6,0 | 3 11.0° | 9900 | Yes | 0,22 |
| 3930956 | M170D035Z04M16RD12 | 35 | 23 | 29 | 17,0 | M16 | 43 | 22 | 6,0 | 4 10.5° | 9900 | Yes | 0,21 |
| 3930958 | M170D042Z05M16RD12 | 42 | 30 | 29 | 17,0 | M16 | 43 | 22 | 6,0 | 5 7.2° | 7500 | Yes | 0,26 |
- Spare Parts
| insert | clamp | Torx | ||
| D1 max | screw | Nm | screw | driver |
| D1 max | insert screw | Nm | clamp screw | Torx driver |
| 24 | 193.342 | 3,5 | 193.338 | 12148082400 |
| 35 | 193.342 | 3,5 | 193.338 | 12148082400 |
| 42 | 193.342 | 3,5 | 193.338 | 12148082400 |
