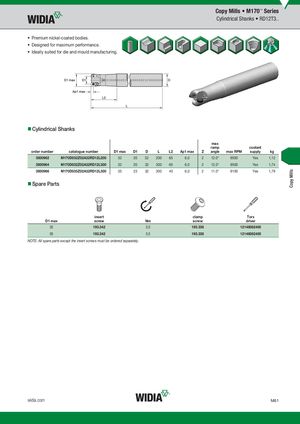

Cylindrical Shanks RD12T3..
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Cylindrical Shanks
| order number | catalogue number | D1 max | D1 | D | L | L2 | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 3930962 | M170D032Z02A32RD12L200 | 32 | 20 | 32 | 200 | 65 | 6,0 | 2 | 12.0° | 9500 | Yes | 1,12 |
| 3930964 | M170D032Z02A32RD12L300 | 32 | 20 | 32 | 300 | 65 | 6,0 | 2 | 12.0° | 9500 | Yes | 1,74 |
| 3930966 | M170D035Z02A32RD12L300 | 35 | 23 | 32 | 300 | 40 | 6,0 | 2 | 11.0° | 9100 | Yes | 1,79 |
- Spare Parts
| insert | clamp | Torx | ||
| D1 max | screw | Nm | screw | driver |
| D1 max | insert screw | Nm | clamp screw | Torx driver |
| 32 | 193.342 | 3,5 | 193.338 | 12148082400 |
| 35 | 193.342 | 3,5 | 193.338 | 12148082400 |
