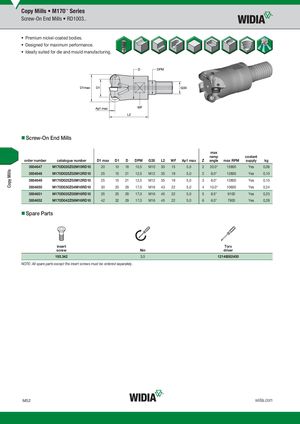

- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Screw-On End Mills
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | max ramp angle | max RPM | coolant supply | kg |
| 3934647 | M170D020Z02M10RD10 | 20 | 10 | 18 | 10,5 | M10 | 30 | 15 | 5,0 | 2 | 20.0° | 15900 | Yes | 0,06 |
| 3934648 | M170D025Z02M12RD10 | 25 | 15 | 21 | 12,5 | M12 | 35 | 19 | 5,0 | 2 | 8.0° | 12800 | Yes | 0,10 |
| 3934649 | M170D025Z03M12RD10 | 25 | 15 | 21 | 12,5 | M12 | 35 | 19 | 5,0 | 3 | 8.0° | 12800 | Yes | 0,10 |
| 3934650 | M170D030Z04M16RD10 | 30 | 20 | 29 | 17,0 | M16 | 43 | 22 | 5,0 | 4 | 10.0° | 10600 | Yes | 0,24 |
| 3934651 | M170D035Z05M16RD10 | 35 | 25 | 29 | 17,0 | M16 | 45 | 22 | 5,0 | 5 | 8.5° | 9100 | Yes | 0,23 |
| 3934652 | M170D042Z06M16RD10 | 42 | 32 | 29 | 17,0 | M16 | 45 | 22 | 5,0 | 6 | 6.0° | 7800 | Yes | 0,28 |
- Spare Parts
insert Torx
| screw | Nm | driver | |
| 193.342 | 3,5 | 12148082400 |
NOTE: All spare parts except the insert screws must be ordered separately.
