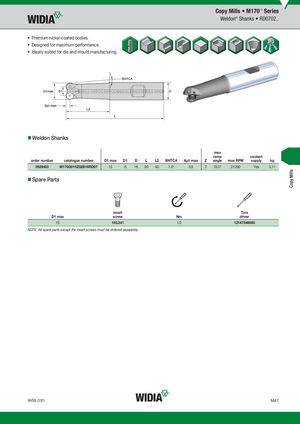

- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Weldon Shanks
max ramp coolant
| order number | catalogue number | D1 max | D1 | D | L | L2 | BHTCA | Ap1 max | Z | angle | max RPM | supply | kg | ||
| 3929403 | M170D015Z02B16RD07 | 15 | 8 | 16 | 90 | 40 | 1.0° | 3,5 | 2 | 18.0° | 21200 | Yes | 0,11 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | |
| 15 | 193.341 | 1,0 | 12147549000 |
NOTE: All spare parts except the insert screws must be ordered separately.
