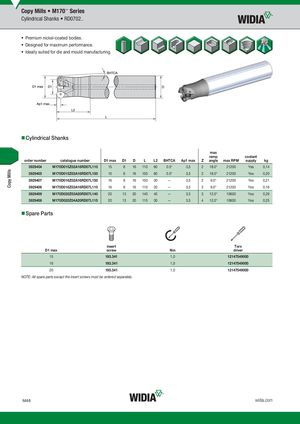

Cylindrical Shanks RD0702..
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Cylindrical Shanks
| order number | catalogue number | D1 max | D1 | D | L | L2 | BHTCA | Ap1 max | Z max ramp angle | max RPM | coolant supply | kg |
| 3929404 | M170D015Z02A16RD07L110 | 15 | 8 | 16 | 110 | 60 | 0.5° | 3,5 | 2 18.0° | 21200 | Yes | 0,14 |
| 3929405 | M170D015Z02A16RD07L150 | 15 | 8 | 16 | 150 | 60 | 0.5° | 3,5 | 2 18.0° | 21200 | Yes | 0,20 |
| 3929407 | M170D016Z02A16RD07L150 | 16 | 9 | 16 | 150 | 30 | — | 3,5 | 2 9.0° | 21200 | Yes | 0,21 |
| 3929406 | M170D016Z03A16RD07L110 | 16 | 9 | 16 | 110 | 20 | — | 3,5 | 3 9.0° | 21200 | Yes | 0,16 |
| 3929409 | M170D020Z03A20RD07L140 | 20 | 13 | 20 | 140 | 40 | — | 3,5 | 3 12.0° | 10600 | Yes | 0,29 |
| 3929408 | M170D020Z04A20RD07L115 | 20 | 13 | 20 | 115 | 30 | — | 3,5 | 4 12.0° | 10600 | Yes | 0,25 |
- Spare Parts
insert Torx
D1 max screw Nm driver
| D1 max | insert screw | Nm | Torx driver |
| 15 | 193.341 | 1,0 | 12147549000 |
| 16 | 193.341 | 1,0 | 12147549000 |
| 20 | 193.341 | 1,0 | 12147549000 |
