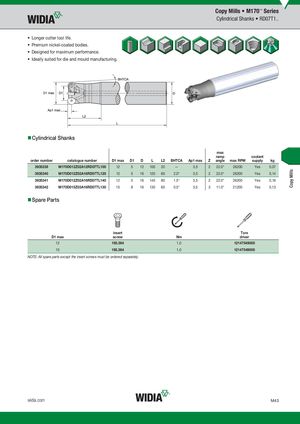

Cylindrical Shanks RD07T1..
- Longer cutter tool life.
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Cylindrical Shanks
| order number | catalogue number | D1 max | D1 | D | L | L2 | BHTCA | Ap1 max | Z max ramp angle | max RPM | coolant supply | kg |
| 3935339 | M170D012Z02A12RD07TL100 | 12 | 5 | 12 | 100 | 20 | — | 3,5 | 2 22.0° | 26200 | Yes | 0,07 |
| 3935340 | M170D012Z02A16RD07TL120 | 12 | 5 | 16 | 120 | 60 | 2.0° | 3,5 | 2 22.0° | 26200 | Yes | 0,14 |
| 3935341 | M170D012Z02A16RD07TL140 | 12 | 5 | 16 | 140 | 80 | 1.5° | 3,5 | 2 22.0° | 26200 | Yes | 0,16 |
| 3935342 | M170D015Z03A16RD07TL130 | 15 | 8 | 16 | 130 | 60 | 0.5° | 3,5 | 3 11.0° | 21200 | Yes | 0,13 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | |
| 12 | 193.364 | 1,0 | 12147549000 | |
| 15 | 193.364 | 1,0 | 12147549000 |
NOTE: All spare parts except the insert screws must be ordered separately.
