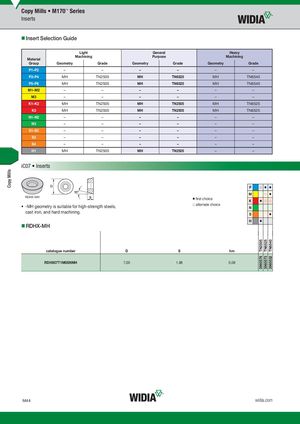

- Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mach | avy ining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | MH | TN2505 | MH | TN6525 | MH | TN6540 |
| P5–P6 | MH | TN2505 | MH | TN6525 | MH | TN6540 |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | MH | TN2505 | MH | TN2505 | MH | TN6525 |
| K3 | MH | TN2505 | MH | TN2505 | MH | TN6525 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | MH | TN2505 | MH | TN2505 | – | – |
iC07 Inserts
P
| etry is suitable for high-strength steels, and hard machining. | �fi rst choice �alternate choice | P M K N S | � � � � � � � � � | |
| H | H | � | ||
| catalogue number D | S | hm | TN2505 TN6525 TN6540 | |
| RDHX07T1M0SNMH 7,00 | 1,98 | 0,08 | 3960578 3960573 3960532 |
