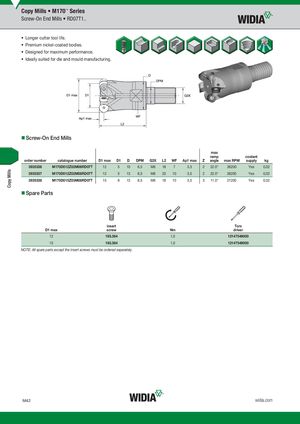

Screw-On End Mills RD07T1..
- Longer cutter tool life.
- Premium nickel-coated bodies.
- Designed for maximum performance.
- Ideally suited for die and mould manufacturing.
- Screw-On End Mills
max ramp coolant
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | angle | max RPM | supply | kg | ||||
| 3935336 | M170D012Z02M06RD07T | 12 | 5 | 10 | 6,5 | M6 | 18 | 7 | 3,5 | 2 | 22.0° | 26200 | Yes | 0,02 | ||||
| 3935337 | M170D012Z02M08RD07T | 12 | 5 | 13 | 8,5 | M8 | 23 | 10 | 3,5 | 2 | 22.0° | 26200 | Yes | 0,02 | ||||
| 3935338 | M170D015Z03M08RD07T | 15 | 8 | 13 | 8,5 | M8 | 18 | 10 | 3,5 | 3 | 11.0° | 21200 | Yes | 0,02 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | ||
| 12 | 193.364 | 1,0 | 12147549000 | ||
| 15 | 193.364 | 1,0 | 12147549000 |
NOTE: All spare parts except the insert screws must be ordered separately.
