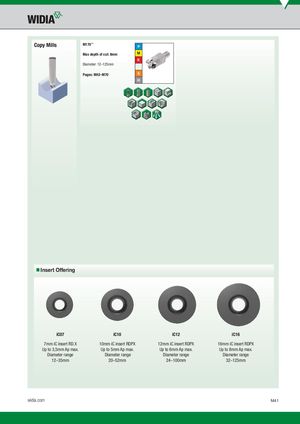

Copy Mills M170™ P Max depth of cut: 8mm M K Diameter: 12–125mm Pages: M42–M70 S H
Insert Offering
iC07 iC10 iC12 iC16
| 7mm iC insert RD.X | 10mm iC insert RDPX | 12mm iC insert RDPX | 16mm iC insert RDPX |
| Up to 3,5mm Ap max. | Up to 5mm Ap max. | Up to 6mm Ap max. | Up to 8mm Ap max. |
| Diameter range | Diameter range | Diameter range | Diameter range | ||
| 12–35mm | 20–52mm | 24–100mm | 32–125mm |
