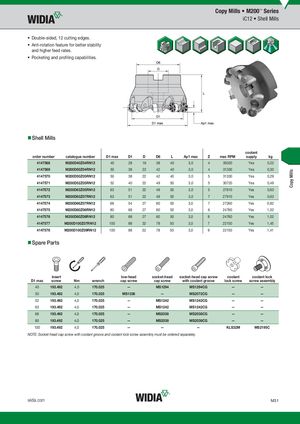

- Double-sided, 12 cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Shell Mills
| order number | catalogue number | D1 max | D1 | D | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 4147568 | M200D40Z04RN12 | 40 | 28 | 16 | 38 | 40 | 3,0 | 4 | 35020 | Yes | 0,22 |
| 4147569 | M200D50Z04RN12 | 50 | 38 | 22 | 42 | 40 | 3,0 | 4 | 31330 | Yes | 0,30 |
| 4147570 | M200D50Z05RN12 | 50 | 38 | 22 | 42 | 40 | 3,0 | 5 | 31330 | Yes | 0,29 |
| 4147571 | M200D52Z05RN12 | 52 | 40 | 22 | 49 | 50 | 3,0 | 5 | 30720 | Yes | 0,49 |
| 4147572 | M200D63Z05RN12 | 63 | 51 | 22 | 49 | 50 | 3,0 | 5 | 27910 | Yes | 0,63 |
| 4147573 | M200D63Z07RN12 | 63 | 51 | 22 | 49 | 50 | 3,0 | 7 | 27910 | Yes | 0,63 |
| 4147574 | M200D66Z07RN12 | 66 | 54 | 27 | 60 | 50 | 3,0 | 7 | 27260 | Yes | 0,82 |
| 4147575 | M200D80Z06RN12 | 80 | 68 | 27 | 60 | 50 | 3,0 | 6 | 24760 | Yes | 1,02 |
| 4147576 | M200D80Z08RN12 | 80 | 68 | 27 | 60 | 50 | 3,0 | 8 | 24760 | Yes | 1,02 |
| 4147577 | M200D100Z07RN12 | 100 | 88 | 32 | 78 | 50 | 3,0 | 7 | 22150 | Yes | 1,45 |
| 4147578 | M200D100Z09RN12 | 100 | 88 | 32 | 78 | 50 | 3,0 | 9 | 22150 | Yes | 1,41 |
- Spare Parts
| insert | low-head | socket-head | socket-head cap screw | coolant | coolant lock | |||||||
| D1 max | screw | Nm | wrench | cap screw | cap screw | with coolant groove | lock screw | screw assembly | ||||
| 40 | 193.492 | 4,0 | 170.025 | — | MS1294 | MS1294CG | — | — |
| D1 max | insert screw | Nm | wrench | low-head cap screw | socket-head cap screw | socket-head cap screw with coolantgroove | coolant lock screw | coolant lock screw assembly |
| 40 | 193.492 | 4,0 | 170.025 | — | MS1294 | MS1294CG | — | — |
| 50 | 193.492 | 4,0 | 170.025 | MS1336 | — | MS2072CG | — | — |
| 52 | 193.492 | 4,0 | 170.025 | — | MS1242 | MS1242CG | — | — |
| 63 | 193.492 | 4,0 | 170.025 | — | MS1242 | MS1242CG | — | — |
| 66 | 193.492 | 4,0 | 170.025 | — | MS2038 | MS2038CG | — | — |
| 80 | 193.492 | 4,0 | 170.025 | — | MS2038 | MS2038CG | — | — |
| 100 | 193.492 | 4,0 | 170.025 | — | — | — | KLS32M | MS2195C |
