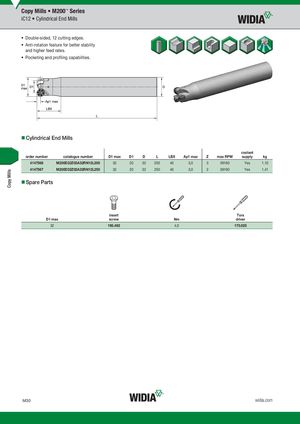

- Double-sided, 12 cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Cylindrical End Mills
coolant
| order number | catalogue number | D1 max | D1 | D | L | LBX | Ap1 max | Z | max RPM | supply | kg | ||||
| 4147566 | M200D32Z03A32RN12L200 | 32 | 20 | 32 | 200 | 40 | 3,0 | 3 | 39160 | Yes | 1,10 | ||||
| 4147567 | M200D32Z02A32RN12L250 | 32 | 20 | 32 | 250 | 40 | 3,0 | 2 | 39160 | Yes | 1,41 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | |
| 32 | 193.492 | 4,0 | 170.025 |
