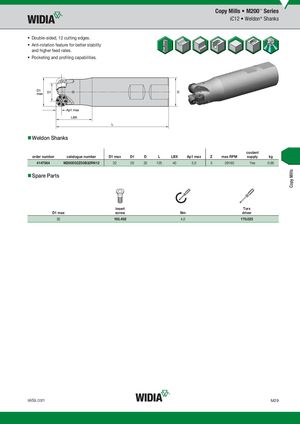

iC12 Weldon ® Shanks
- Double-sided, 12 cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Weldon Shanks
coolant
| order number | catalogue number | D1 max | D1 | D | L | LBX | Ap1 max | Z | max RPM | supply | kg | |||
| 4147564 | M200D32Z03B32RN12 | 32 | 20 | 32 | 125 | 40 | 3,0 | 3 | 39160 | Yes | 0,65 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | |
| 32 | 193.492 | 4,0 | 170.025 |
