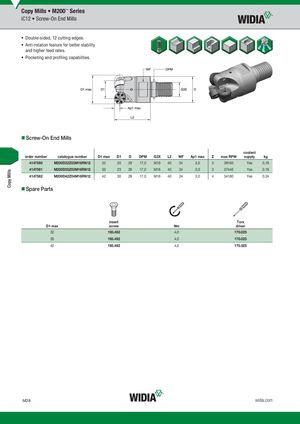

- Double-sided, 12 cutting edges.
- Anti-rotation feature for better stability and higher feed rates.
- Pocketing and profiling capabilities.
- Screw-On End Mills
| order number | catalogue number | D1 max | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | max RPM | coolant supply | kg |
| 4147560 | M200D32Z03M16RN12 | 32 | 20 | 29 | 17,0 | M16 | 40 | 24 | 3,0 | 3 | 39160 | Yes | 0,18 |
| 4147561 | M200D35Z03M16RN12 | 35 | 23 | 29 | 17,0 | M16 | 40 | 24 | 3,0 | 3 | 37440 | Yes | 0,19 |
| 4147562 | M200D42Z04M16RN12 | 42 | 30 | 29 | 17,0 | M16 | 40 | 24 | 3,0 | 4 | 34180 | Yes | 0,24 |
- Spare Parts
insert Torx
| D1 max | screw | Nm | driver | |
| 32 | 193.492 | 4,0 | 170.025 | |
| 35 | 193.492 | 4,0 | 170.025 | |
| 42 | 193.492 | 4,0 | 170.025 |
