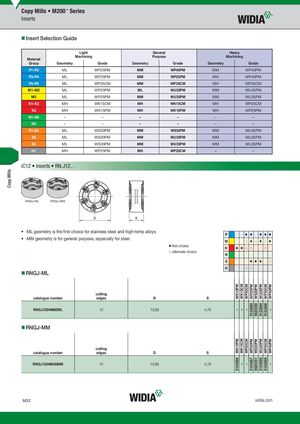

- Insert Selection Guide
| Material | Li Mac | ght hining | Gen Purp | eral ose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | ML | WP25PM | MM | WP40PM | MM | WP40PM |
| P3–P4 | ML | WP25PM | MM | WP25PM | MH | WP40PM |
| P5–P6 | ML | WP35CM | MM | WP35CM | MH | WP35CM |
| M1–M2 | ML | WP25PM | ML | WU35PM | MM | WU35PM |
| M3 | ML | WP25PM | MM | WU35PM | MM | WU35PM |
| K1–K2 | MH | WK15CM | MH | WK15CM | MH | WP20CM |
| K3 | MH | WK15PM | MH | WK15PM | MH | WP25PM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | ML | WS30PM | MM | WS30PM | MM | WU35PM |
| S3 | ML | WS30PM | MM | WU35PM | MM | WU35PM |
| S4 | ML | WS30PM | MM | WU35PM | MM | WU35PM |
| H1 | MH | WP25PM | MH | WP20CM | – | – |
iC12 Inserts RN.J12..
RNGJ-ML RNGJ-MM
- -ML geometry is the fi rst choice for stainless steel and high-temp alloys.
- -MM geometry is for general purpose, especially for steel.
- RNGJ-ML
fi rst choice alternate choice
P M K N S H
cutting
| catalogue number | edges | D | S |
| RNGJ1204M0EML | 12 | 12,00 | 4,75 |
- RNGJ-MM
cutting
| catalogue number | edges | D | S |
| RNGJ1204M0SMM | 12 | 12,00 | 4,75 |
