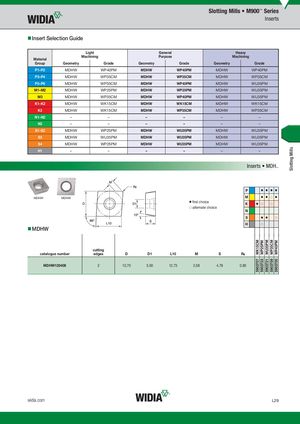

- Insert Selection Guide
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Material
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | ||||||
| P1–P2 | MDHW | WP40PM | MDHW | WP40PM | MDHW | WP40PM | ||||||
| P3–P4 | MDHW | WP35CM | MDHW | WP35CM | MDHW | WP35CM | ||||||
| P5–P6 | MDHW | WP35CM | MDHW | WP40PM | MDHW | WU35PM | ||||||
| M1–M2 | MDHW | WP25PM | MDHW | WP25PM | MDHW | WU35PM | ||||||
| M3 | MDHW | WP35CM | MDHW | WP40PM | MDHW | WU35PM | ||||||
| K1–K2 | MDHW | WK15CM | MDHW | WK15CM | MDHW | WK15CM | ||||||
| K3 | MDHW | WK15CM | MDHW | WP35CM | MDHW | WP35CM | ||||||
| N1–N2 | – | – | – | – | – | – | ||||||
| N3 | – | – | – | – | – | – | ||||||
| S1–S2 | MDHW | WP25PM | MDHW | WU35PM | MDHW | WU35PM | ||||||
| S3 | MDHW | WU35PM | MDHW | WU35PM | MDHW | WU35PM | ||||||
| S4 | MDHW | WP25PM | MDHW | WU35PM | MDHW | WU35PM | ||||||
| H1 | – | – | – | – | – | – |
Inserts • MDH..
MDHW MDHW
- MDHW
fi rst choice alternate choice
P M K N S H
cutting
| catalogue number | edges | D | D1 | L10 | M | S | R¡ |
| MDHW120408 | 2 | 12,70 | 5,50 | 12,73 | 2,58 | 4,76 | 0,80 |
