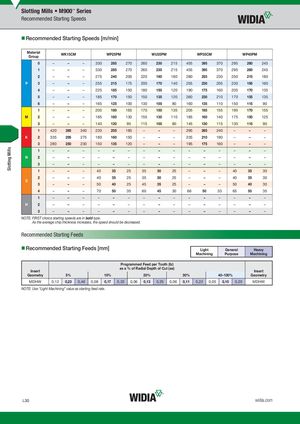

- Recommended Starting Speeds [m/min]
Material
WK15CM WP25PM WU35PM WP35CM WP40PM
Group
| 0 | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | 455 | 395 | 370 | 295 | 260 | 245 | |
| 1 | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | 455 | 395 | 370 | 295 | 260 | 245 | |
| 2 | – | – | – | 275 | 240 | 200 | 220 | 190 | 160 | 280 | 255 | 230 | 250 | 215 | 180 | |
| P | 3 | – | – | – | 255 | 215 | 175 | 200 | 170 | 140 | 255 | 230 | 205 | 230 | 195 | 160 |
| 4 | – | – | – | 225 | 185 | 150 | 180 | 150 | 120 | 190 | 175 | 160 | 205 | 170 | 135 | |
| 5 | – | – | – | 185 | 170 | 150 | 150 | 135 | 120 | 260 | 230 | 210 | 170 | 155 | 135 | |
| 6 | – | – | – | 165 | 125 | 100 | 130 | 100 | 80 | 160 | 135 | 110 | 150 | 115 | 90 | |
| 1 | – | – | – | 205 | 180 | 165 | 170 | 150 | 135 | 205 | 185 | 155 | 195 | 170 | 155 | |
| M | 2 | – | – | – | 185 | 160 | 130 | 155 | 130 | 110 | 185 | 160 | 140 | 175 | 150 | 125 |
| 3 | – | – | – | 140 | 120 | 95 | 115 | 100 | 80 | 145 | 130 | 115 | 130 | 115 | 90 | |
| 1 | 420 | 385 | 340 | 230 | 205 | 185 | – | – | – | 295 | 265 | 240 | – | – | – | |
| K | 2 | 335 | 295 | 275 | 180 | 160 | 150 | – | – | – | 235 | 210 | 190 | – | – | – |
| 3 | 280 | 250 | 230 | 150 | 135 | 120 | – | – | – | 195 | 175 | 160 | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | 40 | 35 | 30 | |
| 2 | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | 40 | 35 | 30 |
S
| 3 | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | – | – | – | 50 | 40 | 30 | |
| 4 | – | – | – | 70 | 50 | 35 | 60 | 45 | 30 | 66 | 50 | 33 | 65 | 50 | 35 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | ||||||||||
| MDHW | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | MDHW |
NOTE: Use “Light Machining” value as starting feed rate.
