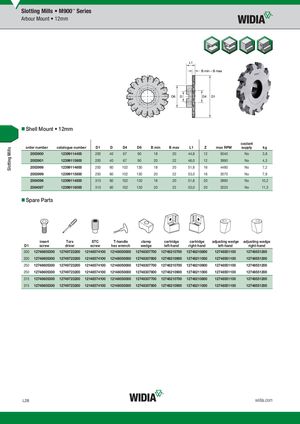

Общий каталог Widia 2017 - страница 898
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Shell Mount • 12mm
coolant
| order number | catalogue number | D1 | D | D4 | D6 | B min | B max | L1 | Z | max RPM | supply | kg |
| 2003900 | 12399114400 | 200 | 40 | 67 | 90 | 18 | 20 | 44,8 | 12 | 5040 | No | 3,8 |
| 2003901 | 12399115600 | 200 | 40 | 67 | 90 | 20 | 22 | 46,0 | 12 | 3990 | No | 4,3 |
| 2003998 | 12399114600 | 250 | 60 | 102 | 130 | 18 | 20 | 51,8 | 16 | 4480 | No | 7,2 |
| 2003999 | 12399115800 | 250 | 60 | 102 | 130 | 20 | 22 | 53,0 | 16 | 3570 | No | 7,9 |
| 2004096 | 12399114800 | 315 | 60 | 102 | 130 | 18 | 20 | 51,8 | 20 | 3990 | No | 10,2 |
| 2004097 | 12399116000 | 315 | 60 | 102 | 130 | 20 | 22 | 53,0 | 20 | 3220 | No | 11,3 |
- Spare Parts
| insert | Torx | STC | T-handle | clamp | cartridge | cartridge | adjusting wedge | adjusting wedge | |||||
| D1 | screw | driver | screw | hex wrench | wedge | left-hand | right-hand | left-hand | right-hand | ||||
| 200 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307700 | 12748210700 | 12748210800 | 12748551100 | 12748551200 | ||||
| 200 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307800 | 12748210900 | 12748211000 | 12748551100 | 12748551200 | ||||
| 250 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307700 | 12748210700 | 12748210800 | 12748551100 | 12748551200 | ||||
| 250 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307800 | 12748210900 | 12748211000 | 12748551100 | 12748551200 | ||||
| 315 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307700 | 12748210700 | 12748210800 | 12748551100 | 12748551200 | ||||
| 315 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307800 | 12748210900 | 12748211000 | 12748551100 | 12748551200 |
