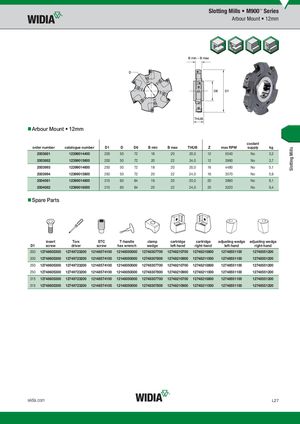

- Arbour Mount • 12mm
coolant
| order number | catalogue number | D1 | D | D6 | B min | B max | THUB | Z | max RPM | supply | kg |
| 2003881 | 12399014400 | 200 | 50 | 72 | 18 | 20 | 20,0 | 12 | 5040 | No | 3,2 |
| 2003882 | 12399015600 | 200 | 50 | 72 | 20 | 22 | 24,0 | 12 | 3990 | No | 3,7 |
| 2003993 | 12399014600 | 250 | 50 | 72 | 18 | 20 | 20,0 | 16 | 4480 | No | 5,1 |
| 2003994 | 12399015800 | 250 | 50 | 72 | 20 | 22 | 24,0 | 16 | 3570 | No | 5,9 |
| 2004081 | 12399014800 | 315 | 60 | 84 | 18 | 20 | 20,0 | 20 | 3990 | No | 8,1 |
| 2004082 | 12399016000 | 315 | 60 | 84 | 20 | 22 | 24,0 | 20 | 3220 | No | 9,4 |
- Spare Parts
| insert | Torx | STC | T-handle | clamp | cartridge | cartridge | adjusting wedge | adjusting wedge | |||||
| D1 | screw | driver | screw | hex wrench | wedge | left-hand | right-hand | left-hand | right-hand | ||||
| 200 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307700 | 12748210700 | 12748210800 | 12748551100 | 12748551200 | ||||
| 200 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307800 | 12748210900 | 12748211000 | 12748551100 | 12748551200 | ||||
| 250 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307700 | 12748210700 | 12748210800 | 12748551100 | 12748551200 | ||||
| 250 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307800 | 12748210900 | 12748211000 | 12748551100 | 12748551200 | ||||
| 315 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307700 | 12748210700 | 12748210800 | 12748551100 | 12748551200 | ||||
| 315 | 12748605300 | 12749723200 | 12148574100 | 12148050000 | 12748307800 | 12748210900 | 12748211000 | 12748551100 | 12748551200 |
