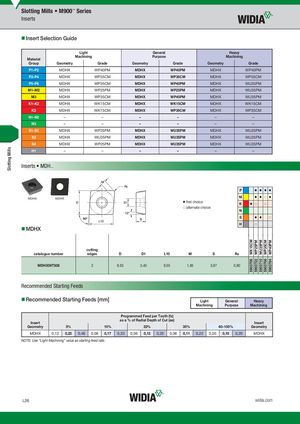

Общий каталог Widia 2017 - страница 896
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Insert Selection Guide
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Material
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | ||||||
| P1–P2 | MDHX | WP40PM | MDHX | WP40PM | MDHX | WP40PM | ||||||
| P3–P4 | MDHX | WP35CM | MDHX | WP35CM | MDHX | WP35CM | ||||||
| P5–P6 | MDHX | WP35CM | MDHX | WP40PM | MDHX | WU35PM | ||||||
| M1–M2 | MDHX | WP25PM | MDHX | WP25PM | MDHX | WU35PM | ||||||
| M3 | MDHX | WP35CM | MDHX | WP40PM | MDHX | WU35PM | ||||||
| K1–K2 | MDHX | WK15CM | MDHX | WK15CM | MDHX | WK15CM | ||||||
| K3 | MDHX | WK15CM | MDHX | WP35CM | MDHX | WP35CM | ||||||
| N1–N2 | – | – | – | – | – | – | ||||||
| N3 | – | – | – | – | – | – | ||||||
| S1–S2 | MDHX | WP25PM | MDHX | WU35PM | MDHX | WU35PM | ||||||
| S3 | MDHX | WU35PM | MDHX | WU35PM | MDHX | WU35PM | ||||||
| S4 | MDHX | WP25PM | MDHX | WU35PM | MDHX | WU35PM | ||||||
| H1 | – | – | – | – | – | – |
Inserts • MDH..
MDHX MDHX
- MDHX
fi rst choice alternate choice
P M K N S H
cutting
| catalogue number | edges | D | D1 | L10 | M | S | R¡ |
| MDHX09T308 | 2 | 9,53 | 3,40 | 9,55 | 1,85 | 3,97 | 0,80 |
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | ||||||||||
| MDHX | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | MDHX |
NOTE: Use “Light Machining” value as starting feed rate.
