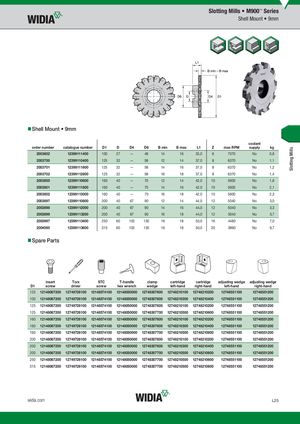

Shell Mount • 9mm
- Shell Mount • 9mm
coolant
| order number | catalogue number | D1 | D | D4 | D6 | B min | B max | L1 | Z | max RPM | supply | kg |
| 2003602 | 12399111400 | 100 | 27 | — | 48 | 14 | 16 | 33,0 | 6 | 7070 | No | 0,8 |
| 2003700 | 12399110400 | 125 | 32 | — | 58 | 12 | 14 | 37,0 | 8 | 6370 | No | 1,1 |
| 2003701 | 12399111600 | 125 | 32 | — | 58 | 14 | 16 | 37,0 | 8 | 6370 | No | 1,2 |
| 2003702 | 12399112800 | 125 | 32 | — | 58 | 16 | 18 | 37,0 | 8 | 6370 | No | 1,4 |
| 2003800 | 12399110600 | 160 | 40 | — | 70 | 12 | 14 | 42,0 | 10 | 5600 | No | 1,8 |
| 2003801 | 12399111800 | 160 | 40 | — | 70 | 14 | 16 | 42,0 | 10 | 5600 | No | 2,1 |
| 2003802 | 12399113000 | 160 | 40 | — | 70 | 16 | 18 | 42,0 | 10 | 5600 | No | 2,3 |
| 2003897 | 12399110800 | 200 | 40 | 67 | 90 | 12 | 14 | 44,0 | 12 | 5040 | No | 3,0 |
| 2003898 | 12399112000 | 200 | 40 | 67 | 90 | 14 | 16 | 44,0 | 12 | 5040 | No | 3,3 |
| 2003899 | 12399113200 | 200 | 40 | 67 | 90 | 16 | 18 | 44,0 | 12 | 5040 | No | 3,7 |
| 2003997 | 12399113400 | 250 | 60 | 102 | 130 | 16 | 18 | 50,0 | 16 | 4480 | No | 7,0 |
| 2004095 | 12399113600 | 315 | 60 | 102 | 130 | 16 | 18 | 50,0 | 20 | 3990 | No | 9,7 |
- Spare Parts
| insert | Torx | STC T-handle | clamp cartridge | cartridge | adjusting wedge | adjusting wedge | |||
| D1 | screw | driver | screw hex wrench | wedge left-hand | right-hand | left-hand | right-hand | ||
| 125 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 100 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 125 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 125 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 160 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 160 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 160 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 200 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 200 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 200 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 250 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 315 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
