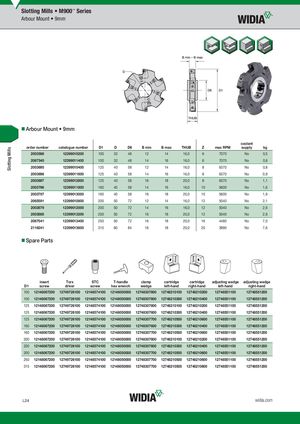

Общий каталог Widia 2017 - страница 894
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Arbour Mount • 9mm
coolant
| order number | catalogue number | D1 | D | D6 | B min | B max | THUB | Z | max RPM | supply | kg |
| 2003598 | 12399010200 | 100 | 32 | 48 | 12 | 14 | 16,0 | 6 | 7070 | No | 0,5 |
| 2067540 | 12399011400 | 100 | 32 | 48 | 14 | 16 | 16,0 | 6 | 7070 | No | 0,8 |
| 2003695 | 12399010400 | 125 | 40 | 58 | 12 | 14 | 16,0 | 8 | 6370 | No | 0,8 |
| 2003696 | 12399011600 | 125 | 40 | 58 | 14 | 16 | 16,0 | 8 | 6370 | No | 0,9 |
| 2003697 | 12399012800 | 125 | 40 | 58 | 16 | 18 | 20,0 | 8 | 6370 | No | 1,1 |
| 2003796 | 12399011800 | 160 | 40 | 58 | 14 | 16 | 16,0 | 10 | 5600 | No | 1,6 |
| 2003797 | 12399013000 | 160 | 40 | 58 | 16 | 18 | 20,0 | 10 | 5600 | No | 1,9 |
| 2065591 | 12399010800 | 200 | 50 | 72 | 12 | 14 | 16,0 | 12 | 5040 | No | 2,1 |
| 2003879 | 12399012000 | 200 | 50 | 72 | 14 | 16 | 16,0 | 12 | 5040 | No | 2,6 |
| 2003880 | 12399013200 | 200 | 50 | 72 | 16 | 18 | 20,0 | 12 | 5040 | No | 2,9 |
| 2067541 | 12399013400 | 250 | 50 | 72 | 16 | 18 | 20,0 | 16 | 4480 | No | 7,0 |
| 2116241 | 12399013600 | 315 | 60 | 84 | 16 | 18 | 20,0 | 20 | 3990 | No | 7,6 |
- Spare Parts
| insert | Torx | STC T-handle | clamp cartridge | cartridge | adjusting wedge | adjusting wedge | |||
| D1 | screw | driver | screw hex wrench | wedge left-hand | right-hand | left-hand | right-hand | ||
| 100 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 100 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 125 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 125 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 125 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 160 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 160 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 200 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210100 | 12748210200 | 12748551100 | 12748551200 |
| 200 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307600 | 12748210300 | 12748210400 | 12748551100 | 12748551200 |
| 200 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 250 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
| 315 | 12148067200 | 12749726100 | 12148574100 | 12148050000 | 12748307700 | 12748210500 | 12748210600 | 12748551100 | 12748551200 |
