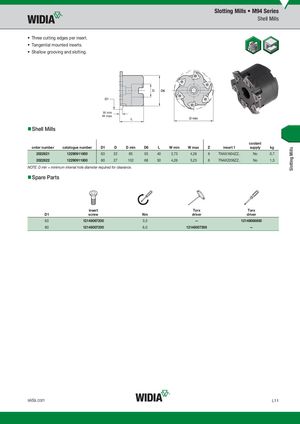

- Three cutting edges per insert.
- Tangential mounted inserts.
- Shallow grooving and slotting.
W min W max
- Shell Mills
coolant
| order number | catalogue number | D1 | D | D min | D6 | L | W min | W max | Z | insert 1 | supply | kg | |||
| 2022621 | 12290911600 | 63 | 22 | 85 | 55 | 40 | 2,73 | 4,26 | 6 | TNAX1604ZZ.. | No | 0,7 | |||
| 2022622 | 12290911800 | 80 | 27 | 102 | 68 | 50 | 4,26 | 5,23 | 6 | TNAX2206ZZ.. | No | 1,3 |
NOTE: D min = minimum internal hole diameter required for clearance.
- Spare Parts
| insert | Torx | Torx | |||||
| D1 | screw | Nm | driver | driver | |||
| 63 | 12148067200 | 3,5 | — | 12148086600 | |||
| 80 | 12148007200 | 6,0 | 12148007500 | — |
