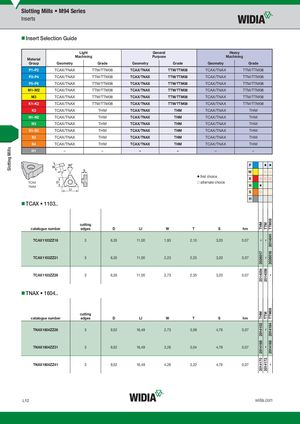

- Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mach | avy ining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 |
| P3–P4 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 |
| P5–P6 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 |
| M1–M2 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 |
| M3 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 |
| K1–K2 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 | TCAX/TNAX | TTM/TTM08 |
| K3 | TCAX/TNAX | THM | TCAX/TNAX | THM | TCAX/TNAX | THM |
| N1–N2 | TCAX/TNAX | THM | TCAX/TNAX | THM | TCAX/TNAX | THM |
| N3 | TCAX/TNAX | THM | TCAX/TNAX | THM | TCAX/TNAX | THM |
| S1–S2 | TCAX/TNAX | THM | TCAX/TNAX | THM | TCAX/TNAX | THM |
| S3 | TCAX/TNAX | THM | TCAX/TNAX | THM | TCAX/TNAX | THM |
| S4 | TCAX/TNAX | THM | TCAX/TNAX | THM | TCAX/TNAX | THM |
| H1 | – | – | – | – | – | – |
| CAX • 1103.. catalogue number TCAX TNAX | cutting edges | D | LI | W | T �first �alte | S i choice rnate choice | P M K N S H hm | � � � � � � � � � THM TTM TTM08 |
| TCAX1103ZZ18 TCAX1103ZZ21 | 3 3 | 6,35 6,35 | 11,00 11,00 | 1,93 2,23 | 2,10 2,25 | 3,20 3,20 | 0,07 0,07 | – – 2014041 2026017 – 2026018 |
| TCAX1103ZZ26 | 3 | 6,35 | 11,00 | 2,73 | 2,35 | 3,20 | 0,07 | 2014054 2014056 – |
| NAX • 1604.. catalogue number | cutting edges | D | LI | W | T | S | hm | THM TTM TTM08 |
| TNAX1604ZZ26 TNAX1604ZZ31 | 3 3 | 9,52 9,52 | 16,49 16,49 | 2,73 3,26 | 3,08 3,04 | 4,76 4,76 | 0,07 0,07 | 2014152 – 2014164 2014166 – 2014168 |
| TNAX1604ZZ41 | 3 | 9,52 | 16,49 | 4,26 | 3,32 | 4,76 | 0,07 | 2014170 2014172 – |
