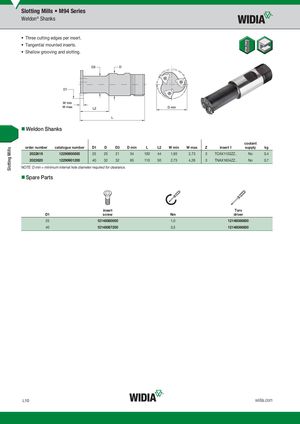

- Three cutting edges per insert.
- Tangential mounted inserts.
- Shallow grooving and slotting.
- Weldon Shanks
coolant
| order number | catalogue number | D1 | D | D3 | D min | L | L2 | W min | W max | Z | insert 1 | supply | kg | |||
| 2022619 | 12290900800 | 25 | 25 | 21 | 34 | 100 | 44 | 1,93 | 2,73 | 3 | TCAX1103ZZ.. | No | 0,4 | |||
| 2022620 | 12290901200 | 40 | 32 | 32 | 65 | 110 | 50 | 2,73 | 4,26 | 3 | TNAX1604ZZ.. | No | 0,7 |
NOTE: D min = minimum internal hole diameter required for clearance.
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 25 | 12148080000 | 1,0 | 12148086600 | ||
| 40 | 12148067200 | 3,5 | 12148086600 |
