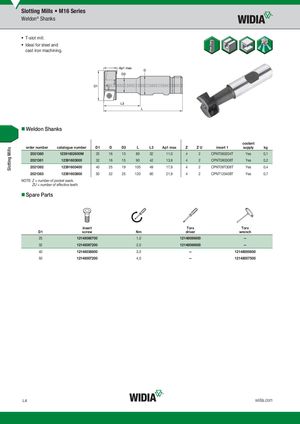

- T-slot mill.
- Ideal for steel and cast iron machining.
- Weldon Shanks
| order number | catalogue number | D1 | D | D3 | L | L3 | Ap1 max | Z | Z U | insert 1 | coolant supply | kg |
| 2021380 | 12391602600M | 25 | 16 | 13 | 80 | 32 | 11,0 | 4 | 2 | CPNT060204T | Yes | 0,1 |
| 2021381 | 12391603000 | 32 | 16 | 15 | 90 | 42 | 13,9 | 4 | 2 | CPNT080308T | Yes | 0,2 |
| 2021382 | 12391603400 | 40 | 25 | 19 | 105 | 49 | 17,9 | 4 | 2 | CPNT09T308T | Yes | 0,4 |
| 2021383 | 12391603800 | 50 | 32 | 25 | 120 | 60 | 21,9 | 4 | 2 | CPNT120408T | Yes | 0,7 |
NOTE: Z = number of pocket seats. ZU = number of effective teeth.
- Spare Parts
| insert | Torx | Torx | ||
| D1 | screw | Nm | driver | wrench |
| D1 | insert screw | Nm | Torx driver | Torx wrench |
| 25 | 12148068700 | 1,0 | 12148086600 | — |
| 32 | 12148067200 | 2,0 | 12148086600 | — |
| 40 | 12148038800 | 3,0 | — | 12148000600 |
| 50 | 12148007200 | 4,0 | — | 12148007500 |
