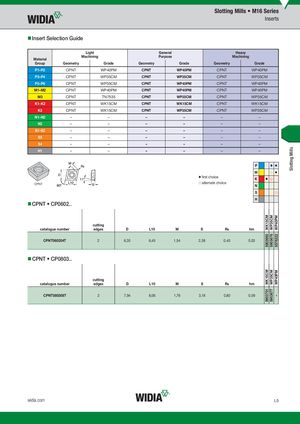

Общий каталог Widia 2017 - страница 875
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Insert Selection Guide
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Material
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | ||||
| P1–P2 | CPNT | WP40PM | CPNT | WP40PM | CPNT | WP40PM | ||||
| P3–P4 | CPNT | WP35CM | CPNT | WP35CM | CPNT | WP35CM | ||||
| P5–P6 | CPNT | WP35CM | CPNT | WP40PM | CPNT | WP40PM | ||||
| M1–M2 | CPNT | WP40PM | CPNT | WP40PM | CPNT | WP40PM | ||||
| M3 | CPNT | TN7535 | CPNT | WP35CM | CPNT | WP35CM | ||||
| K1–K2 | CPNT | WK15CM | CPNT | WK15CM | CPNT | WK15CM | ||||
| K3 | CPNT | WK15CM | CPNT | WP35CM | CPNT | WP35CM | ||||
| N1–N2 | – | – | – | – | – | – | ||||
| N3 | – | – | – | – | – | – | ||||
| S1–S2 | – | – | – | – | – | – | ||||
| S3 | – | – | – | – | – | – | ||||
| S4 | – | – | – | – | – | – | ||||
| H1 | – | – | – | – | – | – |
first choice alternate choice CPNT
- CPNT • CP0602..
P M K N S H
cutting
| catalogue number | edges | D | L10 | M | S | R¡ | hm |
| CPNT060204T | 2 | 6,35 | 6,45 | 1,54 | 2,38 | 0,40 | 0,03 |
- CPNT • CP0803..
cutting
| catalogue number | edges | D | L10 | M | S | R¡ | hm |
| CPNT080308T | 2 | 7,94 | 8,06 | 1,76 | 3,18 | 0,80 | 0,09 |
